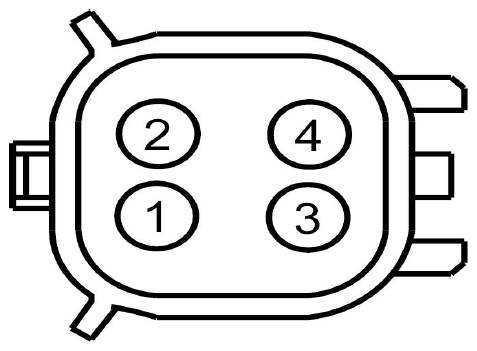

Heated Oxygen Sensor (Ho2S) #22 Connector End View (C141)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBK02 (GN) | 18 | FUSE - 67 OR CIRCUIT BREAKER (VPWR) | TIVCT |
| 2 | CE234 (BU-WH) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) | TIVCT |
| 3 | RE405 (GN-WH) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | TIVCT |
| 4 | VE733 (WH) | 18 | SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) | TIVCT |
| Available Pigtail Kits | |
|---|---|

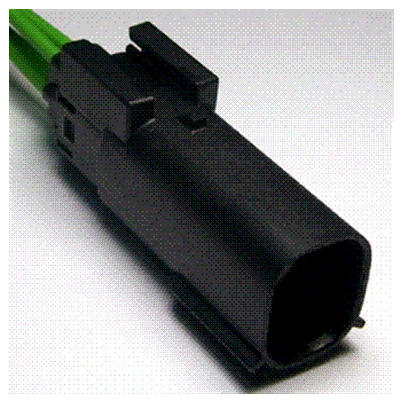

| Pigtail Kit Part Number WPT-1288 | Service Part Number: CU2Z-14S411-ZA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses
|
