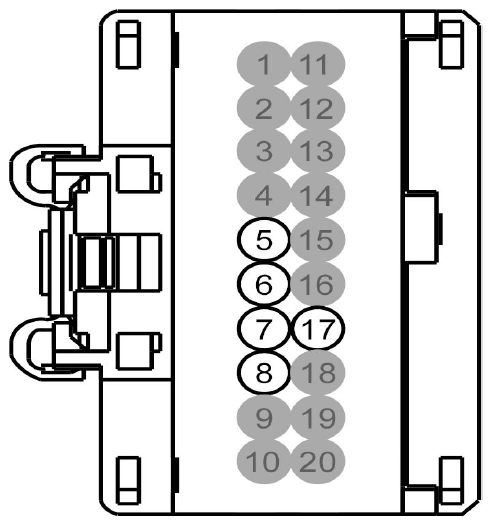

HVAC Module Connector End View (C228C)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | VLN50 (YE-BU) | 22 | CTRL MOD. - AMBIENT LIGHTING # LED BLUE | |
| 6 | VLN49 (YE-GN) | 22 | CTRL MOD. - AMBIENT LIGHTING # LED GREEN | |
| 7 | VLN48 (YE-OG) | 22 | CTRL MOD. - AMBIENT LIGHTING # LED RED | |
| 8 | GD215 (BK-GY) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | RLN44 (BN) | 22 | CTRL MOD. - AMBIENT LIGHTING # LED RETURN | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used |
