Glove Box Lamp Connector End View (C254)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

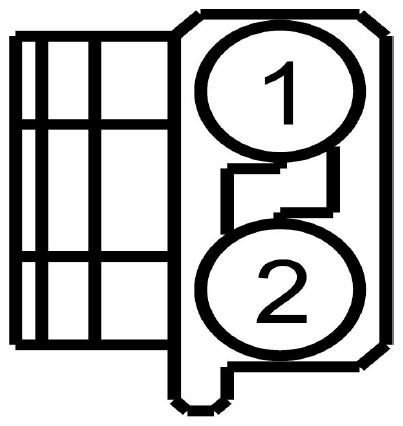

Fig 1: Identifying Glove Box Lamp Connector End View (C254)

G08748808

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLN09 (YE-GN)	20	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
2	GD215 (BK-GY)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT

Available Pigtail Kits

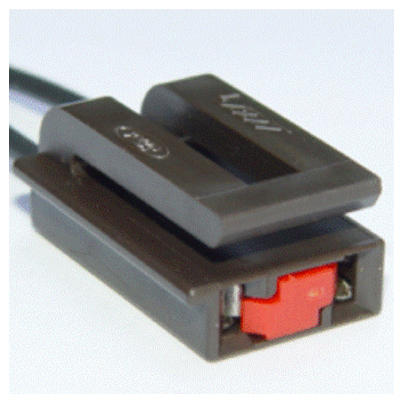

Pigtail Kit Part Number WPT-314	Service Part Number: 3U2Z-14S411-EHA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Door Lamp - Glove Box Motor - Rear Quarter Flip Window Sensor - Sunload Speaker - Tweeter - LH - Front Speaker - Tweeter - RH - Front Switch - Courtesy Lamp - LH Switch - Moon Roof/Sun Roof Switch - Power Window - Quarter Glass

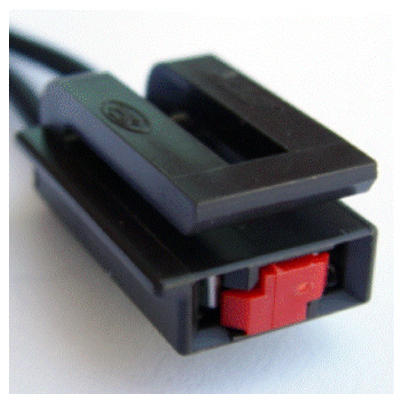

Pigtail Kit Part Number WPT-841	Service Part Number: 5U2Z-14S411-AA Gauge: 18 Pin material: Tin Cavities: 2 Vehicle Uses Lamp - Courtesy Lamp - RH
