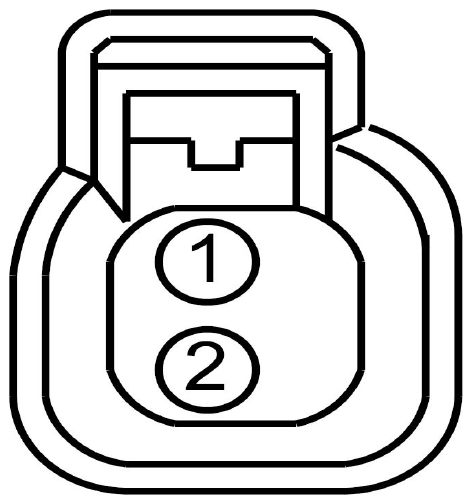

Fuel Injector 5 Connector End View (C185)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE209 (BN) | 0 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) | |
| 2 | CBK01 (BU) | 18 | RELAY - FUEL PUMP |
| Available Pigtail Kits | |
|---|---|

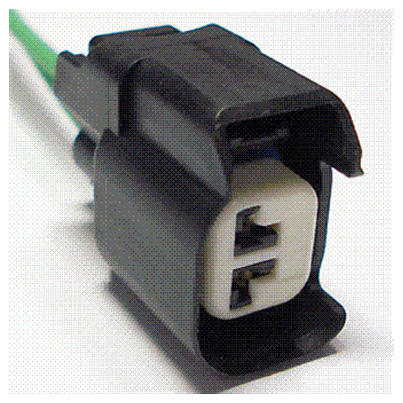

| Pigtail Kit Part Number WPT-1051 | Service Part Number: 5U2Z-14S411-ZB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses
|
