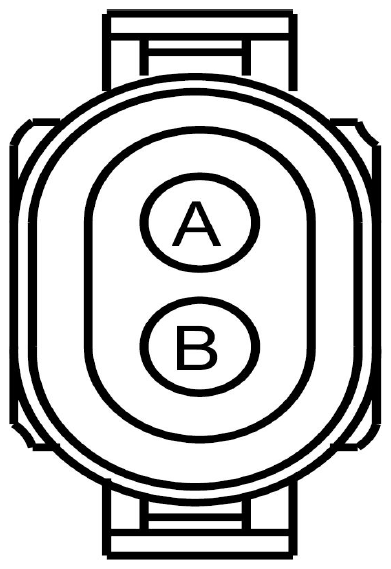

Fog Lamp, Right Front Connector End View (C162)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| A | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT RIGHT | |
| B | CLF12 (BN-YE) | 20 | RELAY - FOG LAMPS FRONT |
| Available Pigtail Kits | |
|---|---|

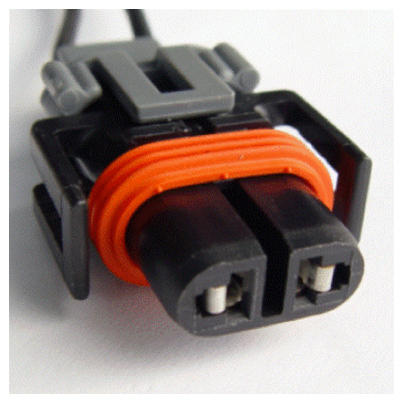

| Pigtail Kit Part Number WPT-952 | Service Part Number: 3U2Z-14S411-VZB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses
|

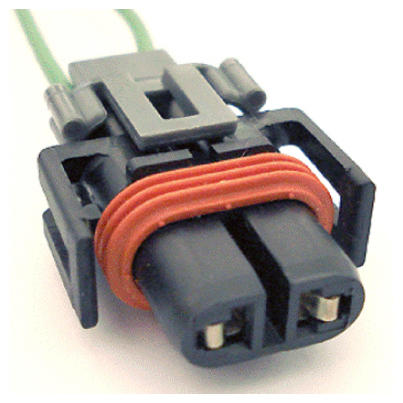

| Pigtail Kit Part Number WPT-781 | Service Part Number: 3U2Z-14S411-VZA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses
|
