FOOTWELL Lamp, Left Front Connector End View (C209)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

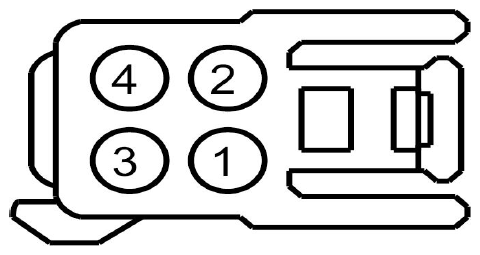

Fig 1: Identifying Left Front Footwell Lamp Connector End View (C209)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	VLN48 (YE-OG)	22	CTRL MOD. - AMBIENT LIGHTING # LED RED
2	VLN49 (YE-GN)	22	CTRL MOD. - AMBIENT LIGHTING # LED GREEN
3	VLN50 (YE-BU)	22	CTRL MOD. - AMBIENT LIGHTING # LED BLUE
4	RLN44 (BN)	22	CTRL MOD. - AMBIENT LIGHTING # LED RETURN

Available Pigtail Kits

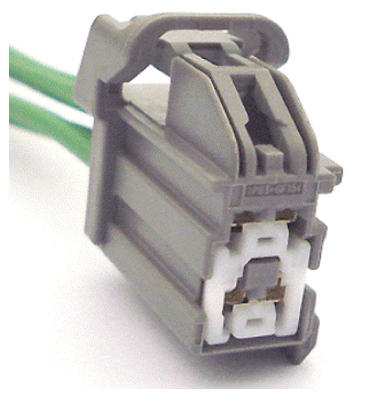

Pigtail Kit Part Number WPT-977	Service Part Number: 3U2Z-14S411-LUB Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses Element - Heated Seat Lamp - Ambient Lighting Lamp - Courtesy - Footwell Mirror - Sideview Motor - Adjustable Pedal Motor - Steering Column Adjust Solenoid - Brake Shift Park Interlock Speaker - Subwoofer Switch - Gear Shift Select/Neutral Safety Transceiver - Passive Anti-Theft (PATS)
