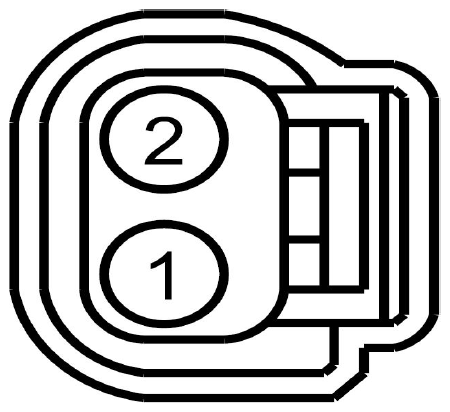

Evaporative Emission (EVAP) Purge Valve Connector End View (C123)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE113 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # EVAPORATIVE EMISSION (EVAP) PURGE VALVE (EVAPCP) | |
| 2 | CBK02 (GN) | 18 | FUSE - 67 OR CIRCUIT BREAKER (VPWR) |
| Available Pigtail Kits | |
|---|---|

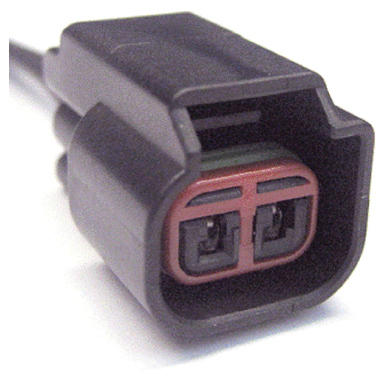

| Pigtail Kit Part Number WPT-905 | Service Part Number: 8U2Z-14S411-EA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses
|
