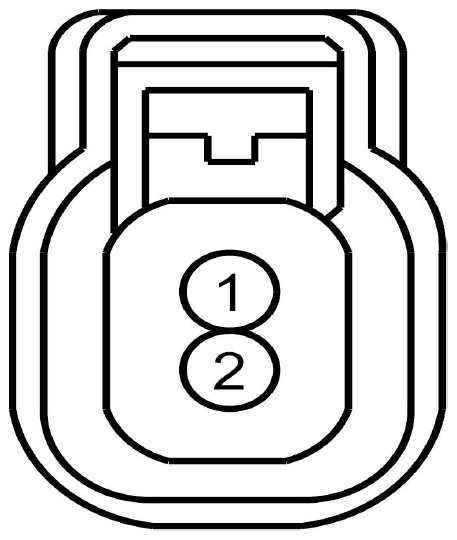

Cylinder Head Temperature (CHT) Sensor Connector End View (C107)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
VE712 (BU-GY) |
18 |
SENSOR - CYLINDER HEAD TEMPERATURE (CHT) |
late production |
| 1 |
VE712 (BU-GY) |
20 |
SENSOR - CYLINDER HEAD TEMPERATURE (CHT) |
early production |
| 2 |
RE405 (GN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) |
early production |
| 2 |
RE405 (GN-WH) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) |
late production |

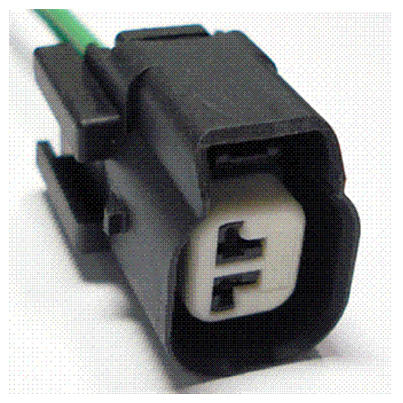

| Available Pigtail Kits |
|
| Pigtail Kit Part Number WPT-984
|
Service Part Number: 3U2Z-14S411-BXAB
Gauge: 16
Pin material: Silver
Cavities: 2
Vehicle Uses
- A/C Compressor Clutch
- EGR Cooler Outlet
- Electronic Locking Differential
- Horn
- Lamp - CHMSL (Center High Mount Stop Lamp)
- Lamp - Rear Park
- Lamp - Reverse
- Lamp - Side Marker
- Motor - Adjustable Pedal
- Sensor - Adjustable Pedal
- Sensor - Brake Fluid Level
- Sensor - Cam Shaft Position
- Sensor - Cylinder Head Temperature
- Sensor - Exhaust Gas Temperature
- Sensor - Liftgate Obstacle
- Sensor - Oil Level
- Sensor - Output Shaft Speed
- Sensor - Speed
- Solenoid - Engine Variable Timing
- Speaker - Door
- Speaker - Front
- Speaker - Rear
- Speaker - Subwoofer
- Speaker - Tweeter - LH - Front
- Switch - A/C Compressor Clutch Cycling
- Switch - Backup Lamp
- Switch - Deck Lid/Hatch Release
- Switch - Deck Lid/Lift Gate Ajar
- Switch - Hood Ajar
- Switch - Lift Gate Glass Ajar
- Switch - Power Liftgate
- Switch - Reverse Park Aid
|
