Crankshaft Position (CKP) Sensor Connector End View (C101)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

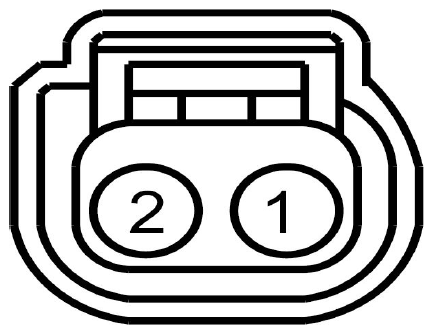

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RE135 (GN-BN) | 18 | CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP-) | |
| 2 | VE711 (YE-VT) | 18 | SENSOR - CRANKSHAFT POSITION (CKP+) |
| Available Pigtail Kits | |
|---|---|

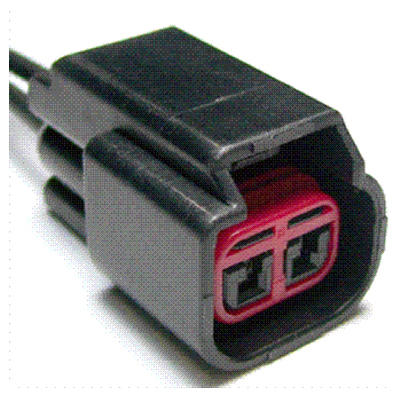

| Pigtail Kit Part Number WPT-759 | Service Part Number: 3U2Z-14S411-SLA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses
|

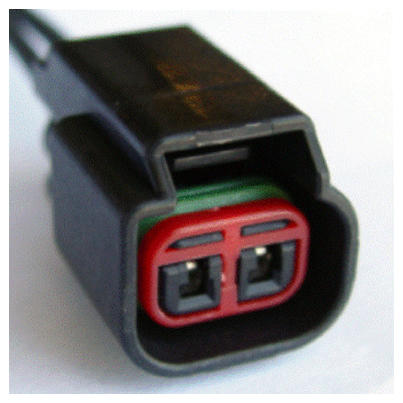

| Pigtail Kit Part Number WPT-986 | Service Part Number: 3U2Z-14S411-SLB Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses
|
