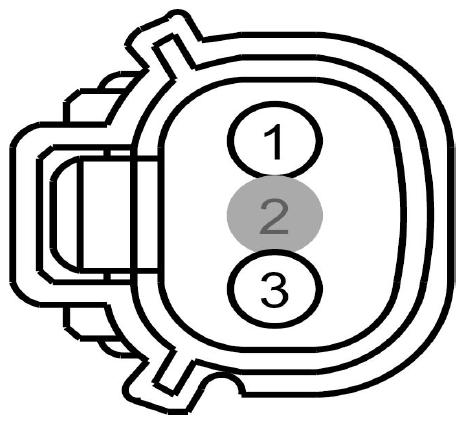

Coil On Plug (Cop) 4 Connector End View (C114)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE306 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP4B) | |
| 2 | * | * | Not Used | |
| 3 | CBK04 (VT) | 16 | FUSE - 68 OR CIRCUIT BREAKER (VPWR) |

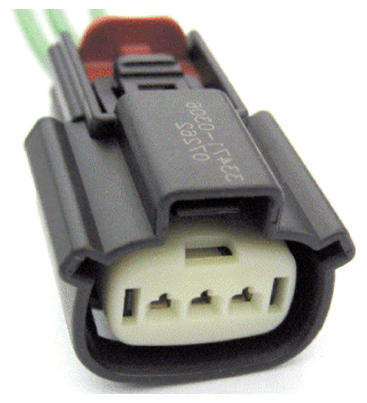

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-931 | Service Part Number: 9U2Z-14S411-EA Gauge: 14 Pin material: Silver Cavities: 3 Vehicle Uses
|
