CLOCKSPRING Connector End View (C218E)

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

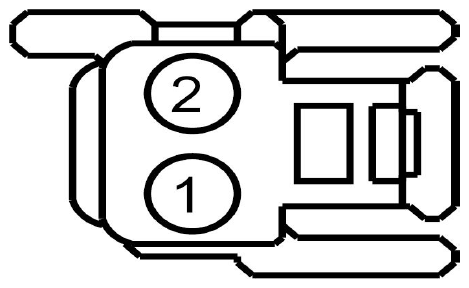

Fig 1: Identifying Clockspring Connector End View (C218E)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (*)	*	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT
2	* (*)	*	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT

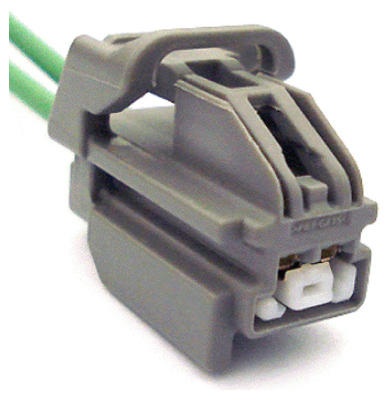

Available Pigtail Kits
Pigtail Kit Part Number WPT-965	Service Part Number: 3U2Z-14S411-AEB Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Module - Heated Seat Motor - Adjustable Pedal Motor - Decklid/Liftgate Sensor - Air Charge Temperature Sensor - EATC In Car Temperature Speaker - Subwoofer Switch - Adjustable Pedal Switch - Brake Deactivation Switch - Brake Pressure Switch - Clutch Pedal Position Switch - Stop Lamp Switch - Third Row Power Folding Seat

Available Pigtail Kits

Pigtail Kit Part Number WPT-965

Service Part Number: 3U2Z-14S411-AEB
Gauge: 14
Pin material: Silver
Cavities: 2
Vehicle Uses

Actuator - Door Lock - Decklid/Liftgate
Element - Heated Seat
Lamp - CHMSL (Center High Mount Stop Lamp)
Module - Heated Seat
Motor - Adjustable Pedal
Motor - Decklid/Liftgate
Sensor - Air Charge Temperature
Sensor - EATC In Car Temperature
Speaker - Subwoofer
Switch - Adjustable Pedal
Switch - Brake Deactivation
Switch - Brake Pressure
Switch - Clutch Pedal Position
Switch - Stop Lamp
Switch - Third Row Power Folding Seat
