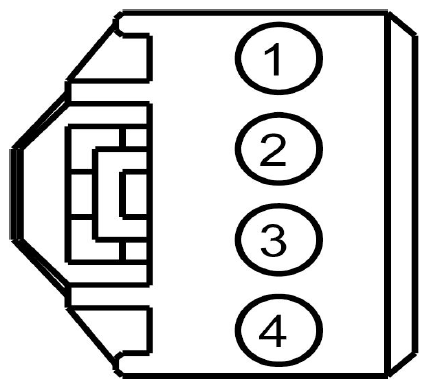

Brake Pedal Position (BPP) Switch Connector End View (C278)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBB59 (BU-RD) | 20 | FUSE - 59 OR CIRCUIT BREAKER | |
| 2 | CES09 (VT-OG) | 20 | SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) | |
| 3 | GD113 (BK-YE) | 20 | GROUND - COWL TOP RIGHT | 3.5L/3.7L TIVCT |
| 3 | GD113 (BK-YE) | 18 | GROUND - COWL TOP RIGHT | 2.0L GTDI, 3.5L GTDI |
| 4 | CCB08 (VT-WH) | 20 | SWITCH - BRAKE PEDAL POSITION (BPP) NORMAL OPEN |

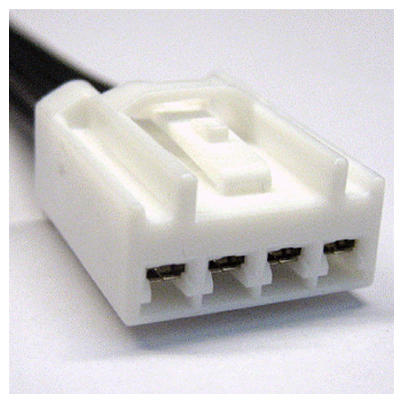

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-912 | Service Part Number: 8U2Z-14S411-HA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses
|
