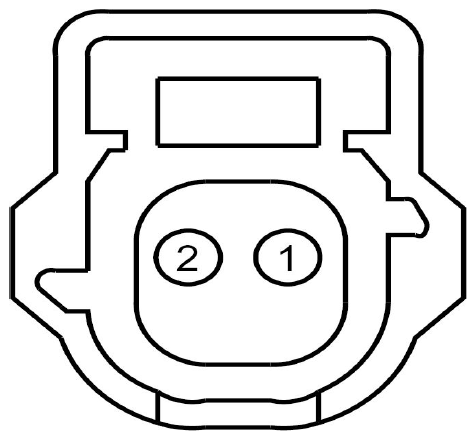

Ambient Air Temperature (AAT) Sensor Connector End View (C132)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VH407 (YE-GN) | 18 | SENSOR - AMBIENT AIR TEMPERATURE (AAT) | |
| 2 | RE407 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) |
| Available Pigtail Kits | |
|---|---|

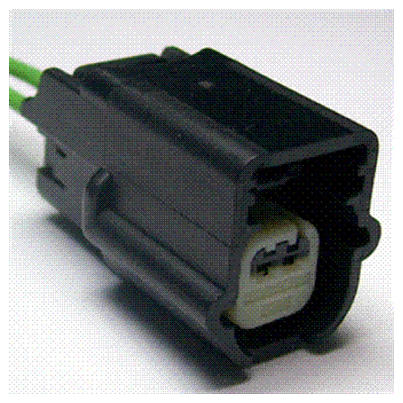

| Pigtail Kit Part Number WPT-1089 | Service Part Number: AU2Z-14S411-AGA Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses
|

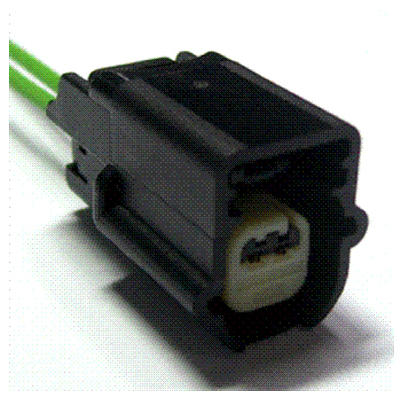

| Pigtail Kit Part Number WPT-1306 | Service Part Number: AU2Z-14S411-AGB Gauge: 20 Pin material: Silver Cavities: 2 Vehicle Uses
|
