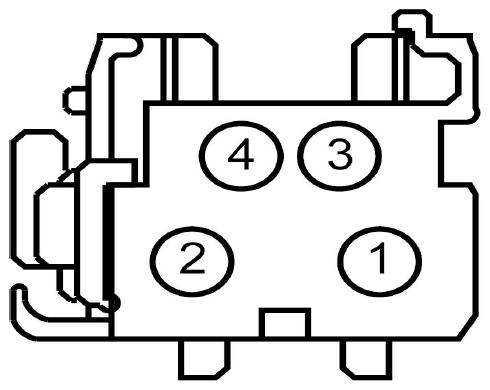

Adjustable Steering Wheel Motor, Tilt Connector End View (C267)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPP05 (WH-VT) | 20 | CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON | |
| 2 | CPP04 (GY) | 20 | CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP | |
| 3 | RPP06 (GN) | 22 | CTRL MOD. - SENSOR ADJUSTABLE PEDAL - | |
| 4 | VPP08 (WH) | 22 | SENSOR - ADJUSTABLE STEERING COLUMN TILT (RAKE) |

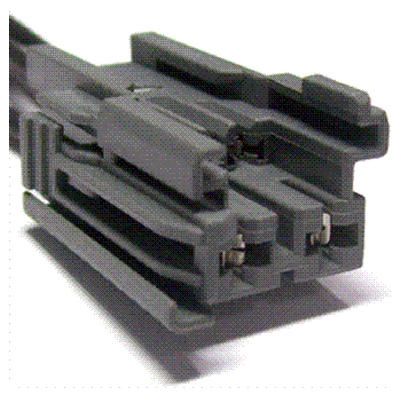

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1072 | Service Part Number: AU2Z-14S411-RA Gauge: 14 18 Pin material: Tin Cavities: 4 Vehicle Uses
|
