Wheel and Tire - Dual Rear Wheel (DRW): Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION
| Rotunda Heavy Duty Wheel Dolly 014-0030 or equivalent |
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| High Temperature Nickel Anti-Seize Lubricant XL-2 |
ESE-M12A4-A |
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
NOTE:

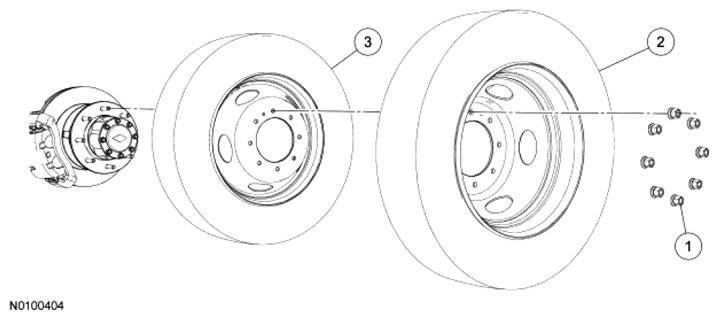

Eight lug wheel shown, 10 lug similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 1012 | Wheel nut |
| 2 | - | Outer wheel and tire assembly |
| 3 | - | Inner wheel and tire assembly |
