Two Speed Fan Operation
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2013 Lincoln Navigator, 2013 Lincoln MKZ, 2013 Lincoln MKX, 2013 Lincoln MKT, and 2013 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
Although the PCM output circuits are called LFC and HFC, cooling fan operation is controlled by a combination of these outputs.
Refer to ENGINE CONTROL COMPONENTS .
NOTE:
The HFC circuit may be wired to the FC and HFC relays. Refer to the
Wiring Diagrams article for additional information.

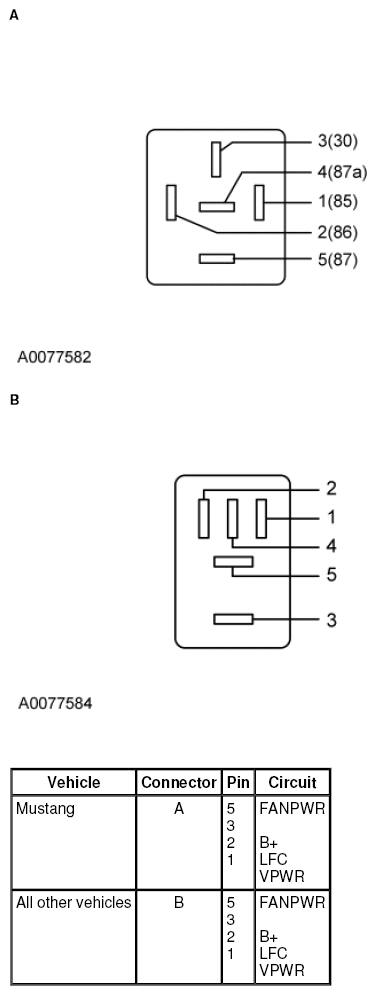

Fan Control (FC) Relay Connector
NOTE:
The HFC circuit may be wired to the FC and HFC relays. Refer to the
Wiring Diagrams article for additional information.
