Fuel Pump Control Module Relay Connector

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2013 Lincoln Navigator, 2013 Lincoln MKZ, 2013 Lincoln MKX, 2013 Lincoln MKT, and 2013 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the Wiring Diagrams article for schematic and connector information.

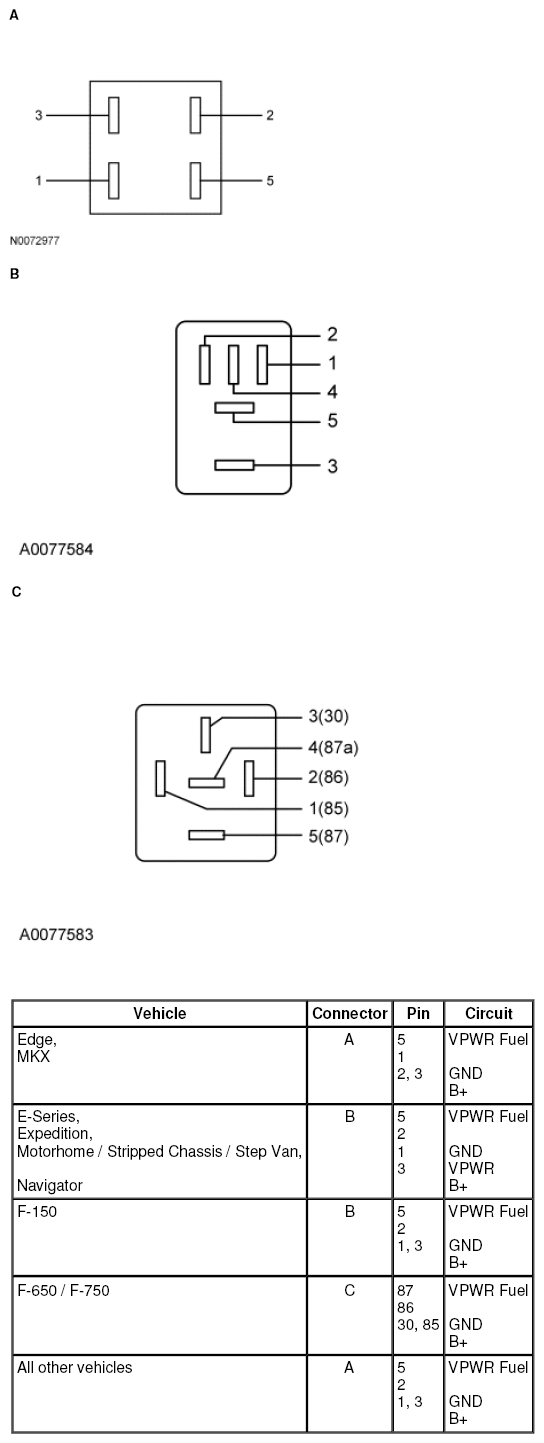

Fig 1: Identifying Fuel Pump Control Module Relay Connector

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Inertia Fuel Shutoff (IFS) Switch Connector

Courtesy of FORD MOTOR CO.

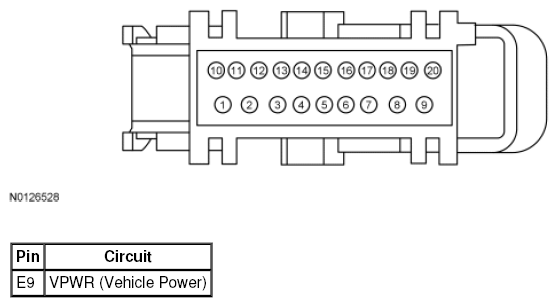

Fig 3: Identifying Body Control Module-E (BCM-E) Connector

Courtesy of FORD MOTOR CO.

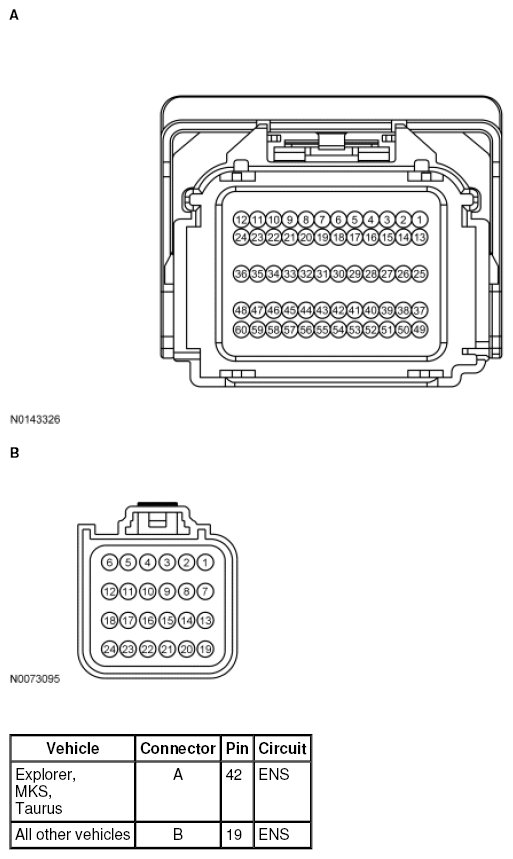

Fig 4: Identifying Restraints Control Module (RCM) Connector

Courtesy of FORD MOTOR CO.
