Pinpoint Test HU: Intake Air Systems: Introduction: Notes
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2013 Lincoln Navigator, 2013 Lincoln MKZ, 2013 Lincoln MKX, 2013 Lincoln MKT, and 2013 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- air cleaner assembly (including air cleaner element) (9600)
- air inlet tube (9F843)
- clean air tube hose and resonator (9R504) and (9F593)
- intake manifold tuning valve (IMTV) (9L490)
- IMTV electric actuator assembly (9L490)
- cruise control cable (9A825)
- throttle body assembly (9E926)

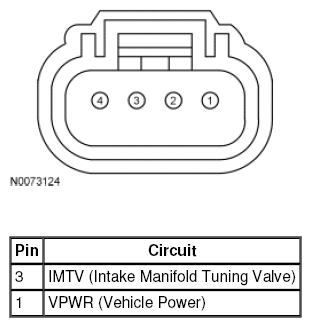

- harness circuits: IMTV, MONITOR, SIGNAL, and VPWR
- powertrain control module (PCM) (12A650)
