Pinpoint Test HK: Variable Camshaft Timing (VCT): Introduction: Notes

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2013 Lincoln Navigator, 2013 Lincoln MKZ, 2013 Lincoln MKX, 2013 Lincoln MKT, and 2013 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

VCT solenoid (6L713) or (6B297)
spider assembly right bank (6C260) or left bank (6C261)
harness circuits: VPWR and VCT
powertrain control module (PCM) (12A650)

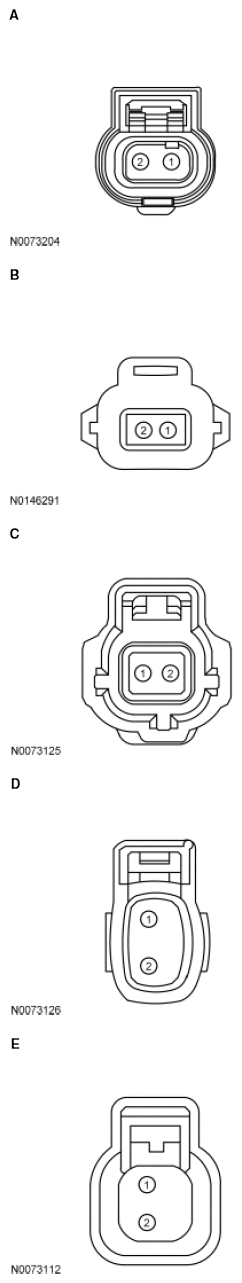

Fig 1: Identifying Variable Camshaft Timing 11 (VCT11) Solenoid Connector (1 Of 2)
Courtesy of FORD MOTOR CO.

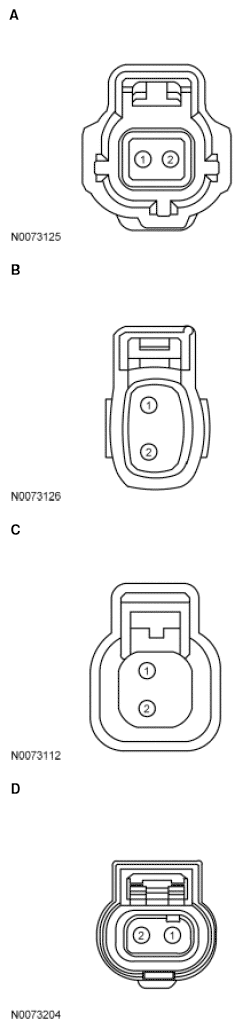

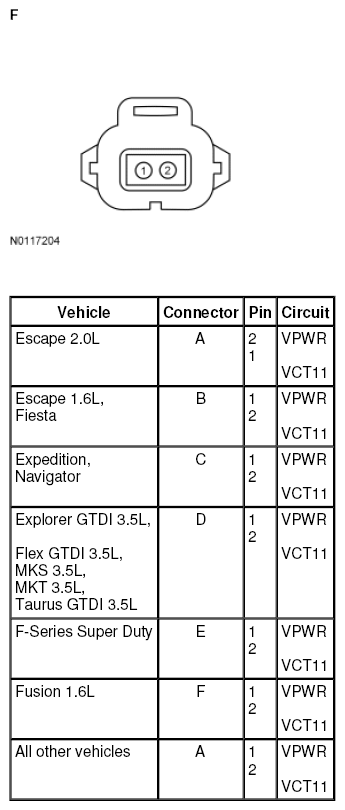

Fig 2: Identifying Variable Camshaft Timing 11 (VCT11) Solenoid Connector (2 Of 2)

Courtesy of FORD MOTOR CO.

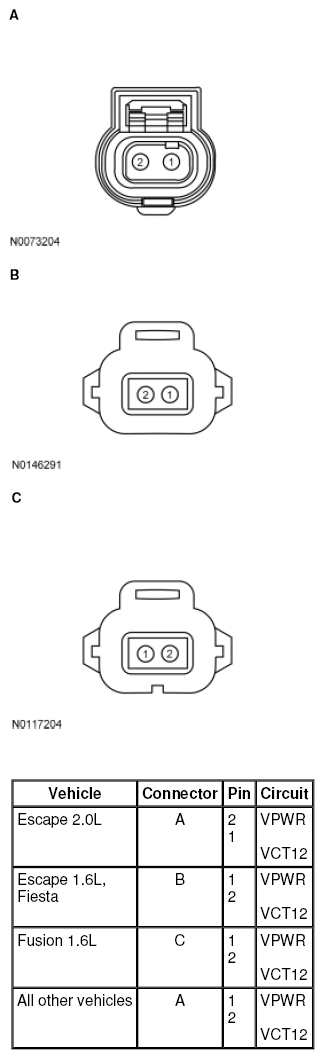

Fig 3: Identifying Variable Camshaft Timing 12 (VCT12) Solenoid Connector

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Variable Camshaft Timing 21 (VCT21) Solenoid Connector (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Variable Camshaft Timing 21 (VCT21) Solenoid Connector (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Variable Camshaft Timing 22 (VCT22) Solenoid Connector

Courtesy of FORD MOTOR CO.
