Pinpoint Test DU: Intake Air Temperature 2 (IAT2) Sensor: Introduction: Notes
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2013 Lincoln Navigator, 2013 Lincoln MKZ, 2013 Lincoln MKX, 2013 Lincoln MKT, and 2013 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:

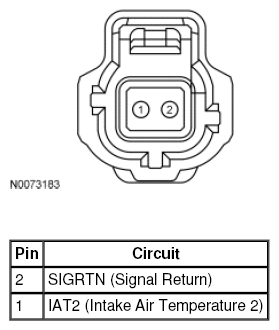

- IAT2 sensor (12A697)
- harness circuits: IAT2 and SIGRTN
- powertrain control module (PCM) (12A650)
Voltage values calculated for VREF equals 5 volts. These values can vary by 15% due to sensor and VREF variations.
TEMPERATURE SENSOR VOLTAGE AND RESISTANCE SPECIFICATIONS
| Temperature | Temperature Sensor Values | ||
|---|---|---|---|
| °C | °F | Voltage | Resistance (K ohms) |
| 120 | 248 | 0.28 | 1.18 |
| 110 | 230 | 0.36 | 1.55 |
| 100 | 212 | 0.47 | 2.07 |
| 90 | 194 | 0.61 | 2.80 |
| 80 | 176 | 0.80 | 3.84 |
| 70 | 158 | 1.05 | 5.37 |
| 60 | 140 | 1.37 | 7.70 |
| 50 | 122 | 1.77 | 10.97 |
| 40 | 104 | 2.23 | 16.15 |
| 30 | 86 | 2.74 | 24.27 |
| 20 | 68 | 3.26 | 37.30 |
| 10 | 50 | 3.73 | 58.75 |
| 0 | 32 | 4.14 | 95.85 |
| -10 | 14 | 4.45 | 160.31 |
