Pinpoint Test DR: Camshaft Position (CMP) Sensor: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2013 Lincoln Navigator, 2013 Lincoln MKZ, 2013 Lincoln MKX, 2013 Lincoln MKT, and 2013 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

CMP sensor (6B288)
harness circuits: CMP, SIGRTN, VBPWR, VREF, VRSRTN, and VRSRTN2
powertrain control module (PCM) (12A650)

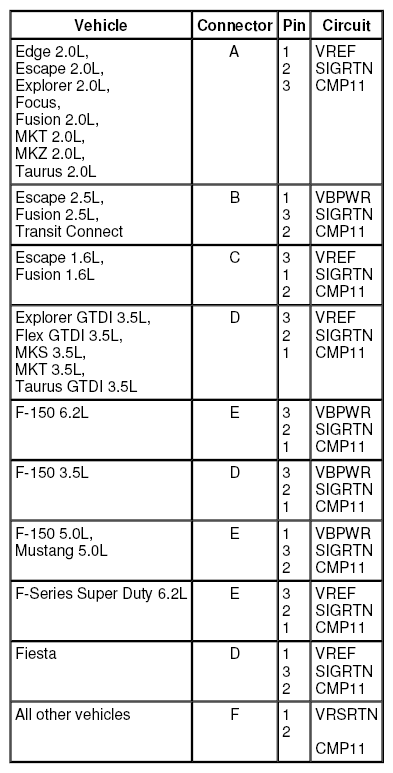

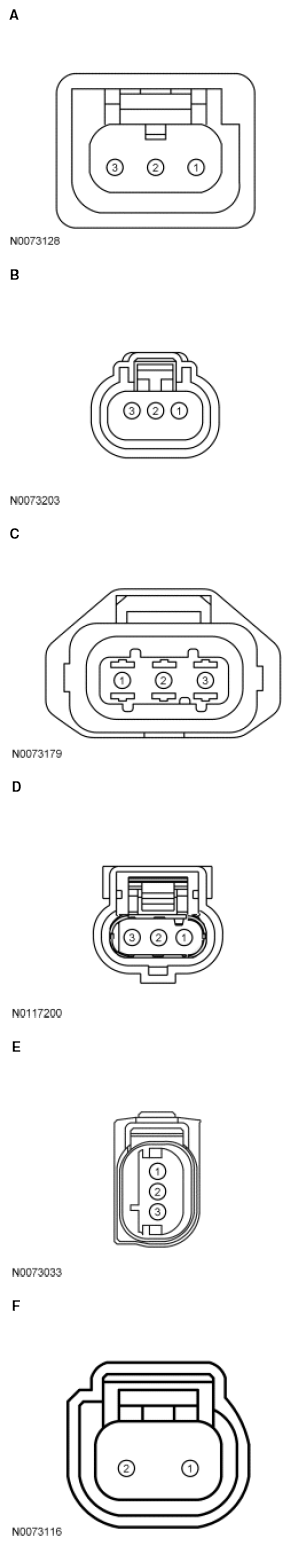

Fig 1: Identifying Camshaft Position 11 (CMP11) Sensor Connector
Courtesy of FORD MOTOR CO.

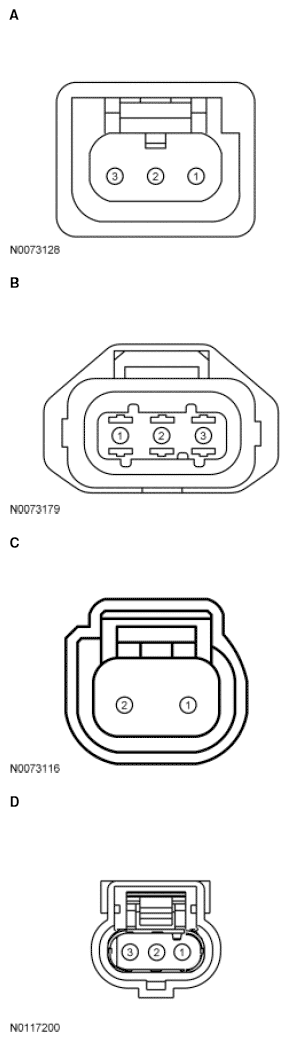

Fig 2: Identifying Camshaft Position 12 (CMP12) Sensor Connector (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Camshaft Position 12 (CMP12) Sensor Connector (2 Of 2)

Courtesy of FORD MOTOR CO.

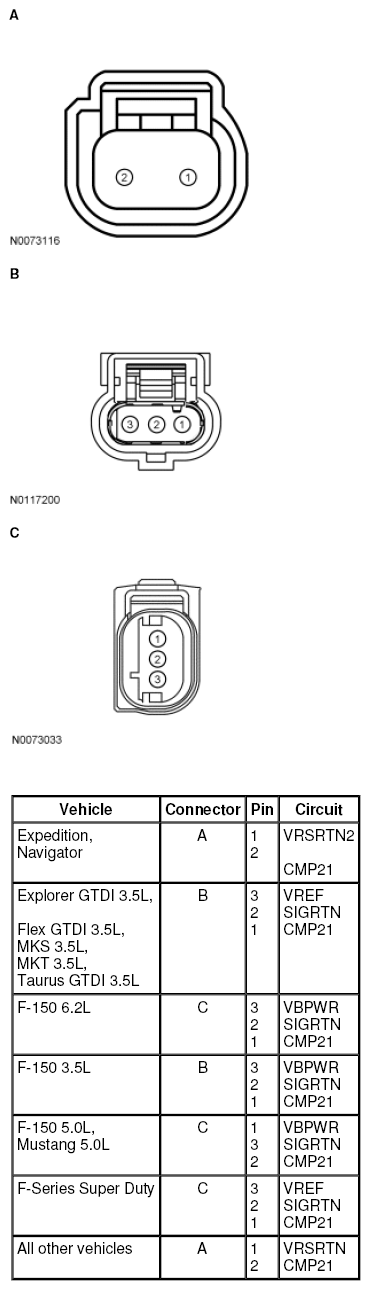

Fig 4: Identifying Camshaft Position 21 (CMP21) Sensor Connector (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Camshaft Position 21 (CMP21) Sensor Connector (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Camshaft Position 22 (CMP22) Sensor Connector

Courtesy of FORD MOTOR CO.
