Cushion, Power
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

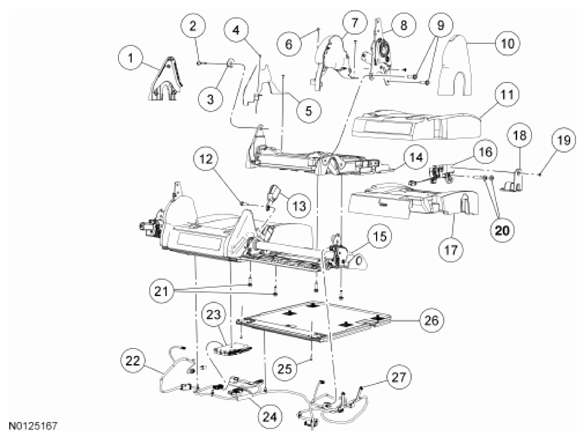

LH shown in illustration, RH similar
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 61348 | Outboard pivot cover | - | - | - |
| 2 | W7144465 | Pivot bolt | 54 Nm (40 lb-ft) | - | - |
| 3 | 613B44 | Bushing | - | - | - |
| 4 | 56910 | Screw | - | - | - |
| 5 | 61348 | Inboard pivot cover | - | - | - |
| 6 | 56910 | Screw (3 required) | - | - | - |
| 7 | 67460 | Backrest latch inboard cover | - | - | - |
| 8 | 613D60 | Backrest latch, power | - | - | - |
| 9 | W714278 | Backrest latch-to-cushion frame bolts (2 required) | 60 Nm (44 lb-ft) | - | - |
| 10 | 67460 | Backrest latch inboard cover | - | - | - |
| 11 | 63804 | Cushion cover | - | - | - |
| 12 | W707957 | Safety belt buckle bolt (part of 613D48) | 40 Nm (30 lb-ft) | - | - |
| 13 | 613D48 | Safety belt buckle | - | - | - |
| 14 | 63160 | Cushion frame | - | - | - |
| 15 | 613B90 | Pivot tube assembly, power | - | - | - |
| 16 | 61142 | Floor latch assembly, power | - | - | - |
| 17 | 63841 | Cushion foam pad | - | - | - |
| 18 | 638A74 | Floor latch cover | - | - | - |
| 19 | 56910 | Screw | - | - | - |
| 20 | W711849 | Floor latch bolts (2 required) | 48 Nm (35 lb-ft) | - | - |
| 21 | W714278 | Cushion frame-to-pivot tube assembly bolts (4 required) | 60 Nm (44 lb-ft) | - | - |
| 22 | 14B719 | LH seat wire harness | - | - | - |
| 23 | 14F042 | PFSM | - | - | - |
| 24 | 14B719 | Seat wire harness | - | - | - |
| 25 | W504694 | Screw (2 required) | - | - | - |
| 26 | 60512 | Load floor panel | - | - | - |
| 27 | 14B720 | RH seat wire harness | - | - | - |
- For additional information, refer to the appropriate procedures in this information.
