Head Restraint Cable Adjustment

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH seat shown in illustration, RH seat similar.

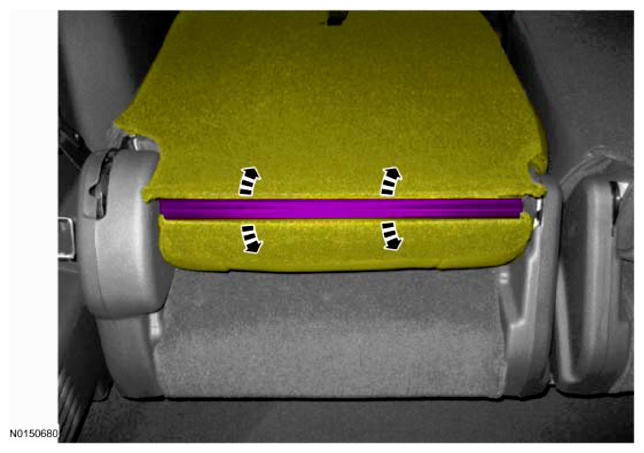

  1. G09091191

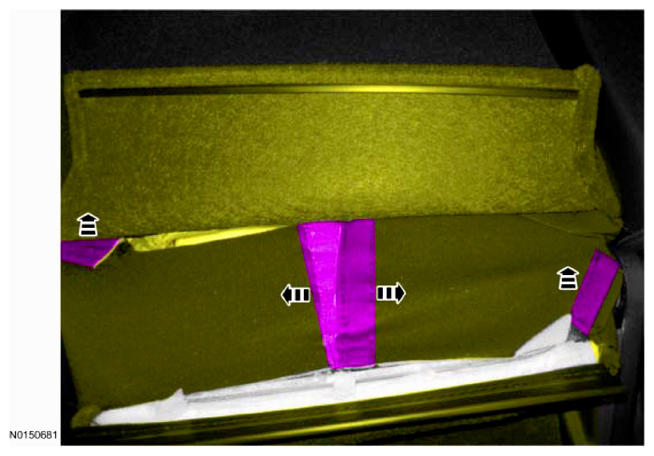

  2. G09091192

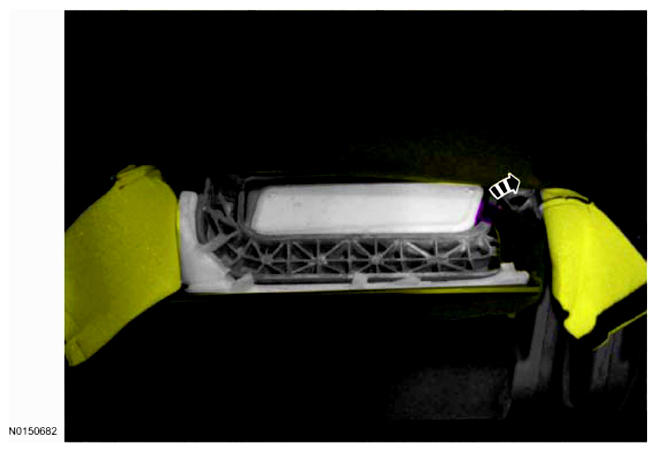

  3. G09091193

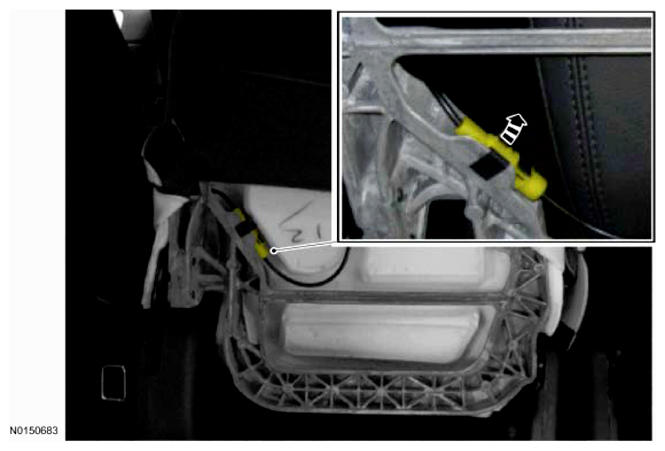

  4. G09091194

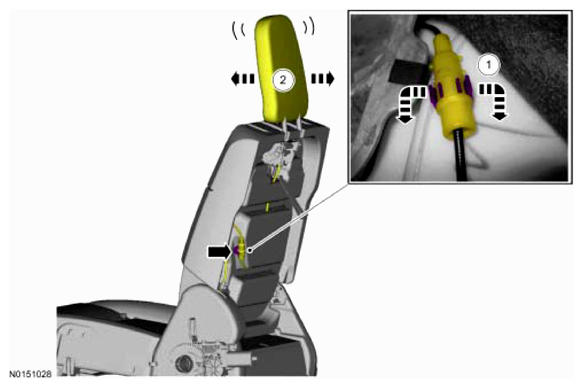

  5. Adjust the head restraint cable.
    1. Push the adjustment clip out and downward simultaneously to release clip.
    2. Wiggle the head restraint fore and aft. Stop wiggling the head restraint and push the adjustment clip back into the locked position.
    G09091195
  6. Assemble the seat.
  7. Operate the power seat fold option and verify the head restraint releases and folds forward as the backrest folds forward.
