Pinch Strip Switch: Removal
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown, RH side similar.
- Remove the liftgate trim panel. REFER to LIFTGATE TRIM PANEL .

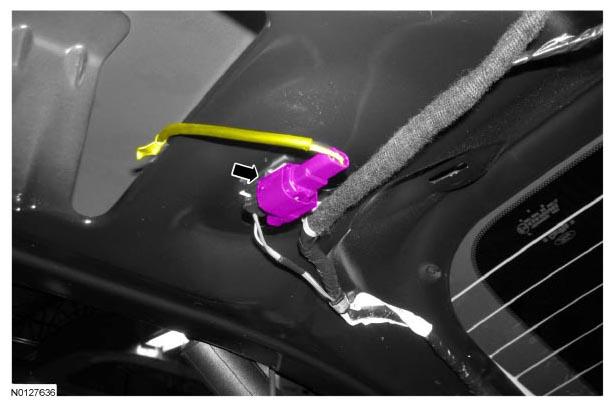

- Disconnect the pinch strip switch electrical connector.

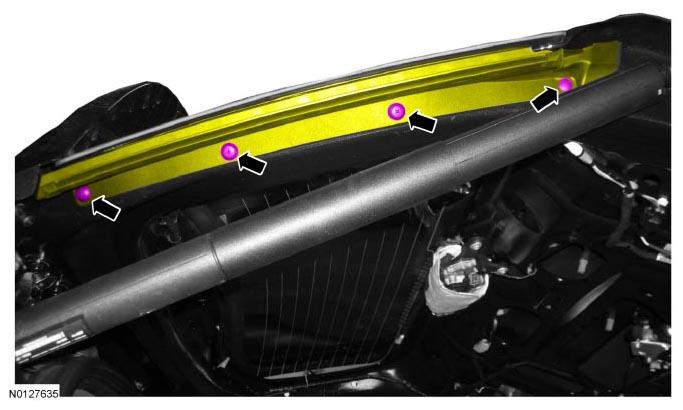

- Remove the 3 pin-type retainers and the push pin.
- Remove the pinch strip switch.
- Remove the rubber grommet and route the electrical connector out of the liftgate.
