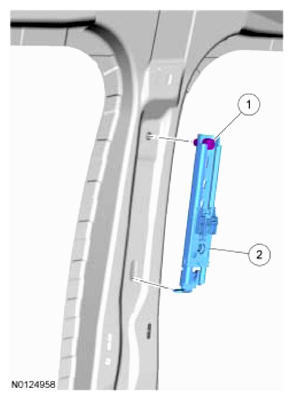

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Torque |
Material Name |
Notes |
| 1 |
- |
Safety belt shoulder height adjuster bolt (part of 602B82) |
40 Nm (30 lb-ft) |
- |
- |
| 2 |
602B82 |
Safety belt shoulder height adjuster |
- |
- |
- |
