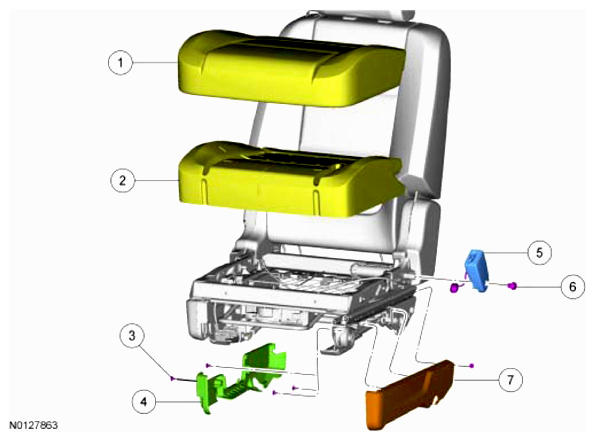

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 7863804 RH 7863805 LH | Cushion cover | - | - | - |
| 2 | 7863840 RH 786384 LH 77 | Cushion foam pad | - | - | - |
| 3 | 56910 | Screw (5 required) | - | - | - |
| 4 | 7463386 | Seat track inboard inner cover | - | - | - |
| 5 | 7860044 RH 7860045 LH | Safety belt buckle | - | - | - |
| 6 | W715688 | Safety belt buckle bolt | 40 Nm (30 lb-ft) | - | - |
| 7 | 7463388 | Seat track inboard outer cover | - | - | - |
