Parking Aid Speaker: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 bolts and remove the steering column cover trim panel.
    1. To install, tighten to 3 Nm (27 lb-in).
    2. Pull outward to release the retainers.
      G07430978
  2. Remove the 4 bolts and remove steering column cover assembly.
    1. To install, tighten to 5 Nm (44 lb-in).
      G07430979

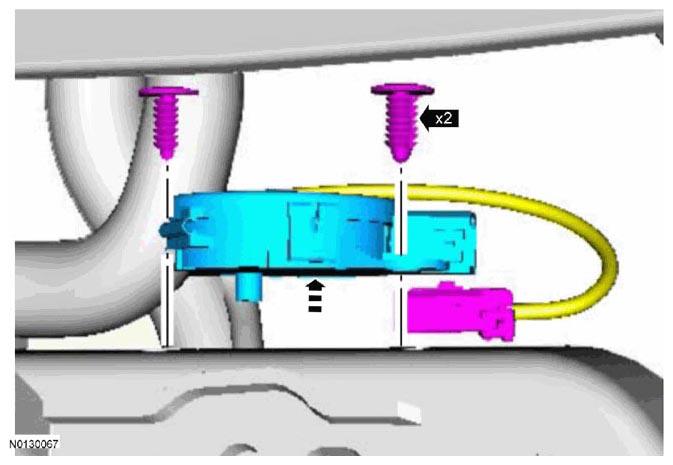

  3. Remove the 2 bolts, disconnect the electrical connector and remove the parking aid speaker.
    G07430980
