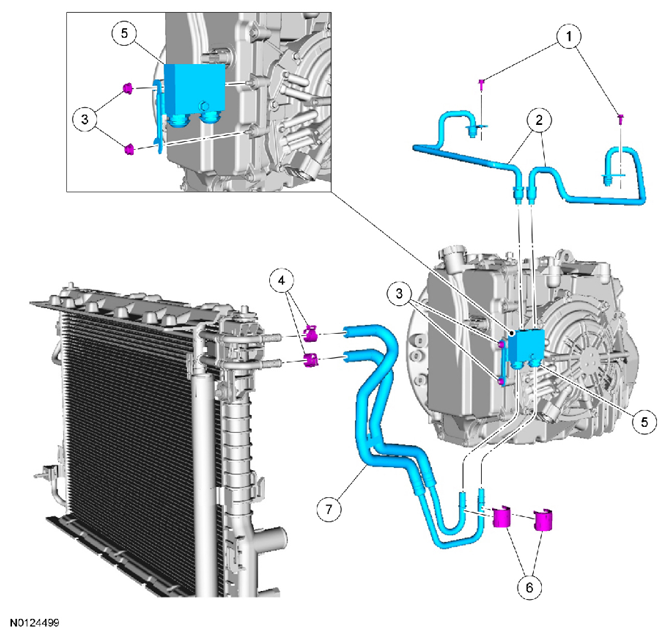

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W712146 | Transmission fluid cooler tube bolt (2 required) | 10 Nm (89 lb-in) | - | Install new bolts |
| 2 | 7R081 | Transmission mounted transmission fluid cooler tube assembly | 30 Nm (22 lb-ft) | - | - |
| 3 | W520101 | Transmission fluid thermal bypass valve nut (2 required) | 9 Nm (80 lb-in) | - | - |
| 4 | part of 7R081 | Clamps | - | - | - |
| 5 | 7H322 | Transmission fluid thermal bypass valve | - | - | - |
| 6 | 7J081 | Transmission fluid cooler hose secondary latch (2 required) | - | - | - |
| 7 | 7R081 | Transmission fluid cooler hose assembly | - | - | - |
