Coolant Pump - 3.5L GTDI: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.
  1. Drain the cooling system. Refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
  2. Remove the engine front cover. Refer to ENGINE FRONT COVER .
  3. Remove and discard the oil filter.
    G09087261
  4. Rotate the crankshaft clockwise and align the timing marks on the VCT  assemblies as shown in illustration.
    G09069595
  5. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC  position.

    Install the Special Tool(s): Tool, Camshaft Holding 303-1248.

    G09069596
  6. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC  position.

    Install the Special Tool(s): Tool, Camshaft Holding 303-1248.

    G09069597
  7. Remove the 3 bolts and the RH VCT  housing.
    G09069598
  8. Remove the 3 bolts and the LH VCT  housing.
    G09069620
    NOTE: The following 3 steps are for primary timing chains when the colored links are not visible.
  9. Mark the timing chain link that aligns with the timing mark on the RH intake VCT  assembly as shown in illustration.
    G09069600
  10. Mark the timing chain link that aligns with the timing mark on the LH intake VCT  assembly as shown in illustration.
    G09069601
  11. NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.

    Mark the 2 timing chain links that align with the timing mark on the crankshaft sprocket as shown in illustration.

    G09069602

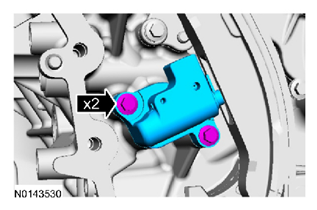

  12. Remove the 2 bolts and the primary timing chain tensioner.
    G08336533
  13. Remove the primary timing chain tensioner arm.
    G09069604
  14. Remove the 2 bolts and the lower LH primary timing chain guide.
    G09069605
  15. Remove the primary timing chain.
    G09069606
  16. Remove the bolt and the upper LH primary timing chain guide.
    G09069641
  17. Compress the RH secondary timing chain tensioner and install a lockpin to retain the tensioner in the collapsed position.
    G09069645
  18. NOTE: The VCT  bolt and the exhaust camshaft bolt must be discarded and new ones installed. However, the exhaust camshaft washer is reusable.

    Remove the RH VCT  assembly bolt and the RH exhaust camshaft sprocket bolt.

    Discard the specified component. Follow local disposal regulations.

    • Remove the RH VCT  assembly, secondary timing chain and the RH exhaust camshaft sprocket as an assembly.
    • Discard the bolts.
      G09069646
  19. Remove the bolt and the RH timing chain guide.
    G09069648
  20. Place clean lint-free shop towels in the oil pan opening to prevent coolant from entering the oil pan during coolant pump removal.
  21. Remove the 8 bolts and the coolant pump.
    G09087278
  22. Remove and discard the gaskets.
    G09087279
