Coolant Pump - 2.0L GTDI: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Before beginning any service procedure, refer to SAFETY WARNINGS . Failure to follow this instruction may result in serious personal injury.

NOTE: Use Motorcraft® Orange Antifreeze/Coolant. Use the same type of coolant originally used to fill the cooling system. Do not mix coolant types. Mixing coolant types degrades the coolant corrosion protection and may damage the engine or cooling system.

NOTE: During normal vehicle operation, Motorcraft® Orange Antifreeze/Coolant may change color from orange to pink or light red. As long as the engine coolant is clear and uncontaminated, this color change does not indicate the engine coolant has degraded nor does it require the engine coolant to be drained, the system to be flushed, or the engine coolant to be replaced.

All vehicles

Refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .

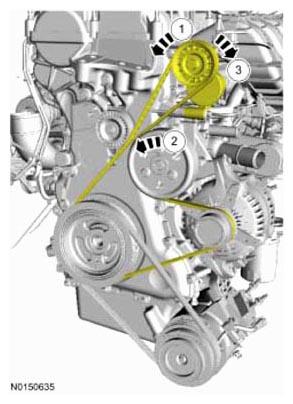

Early build vehicles

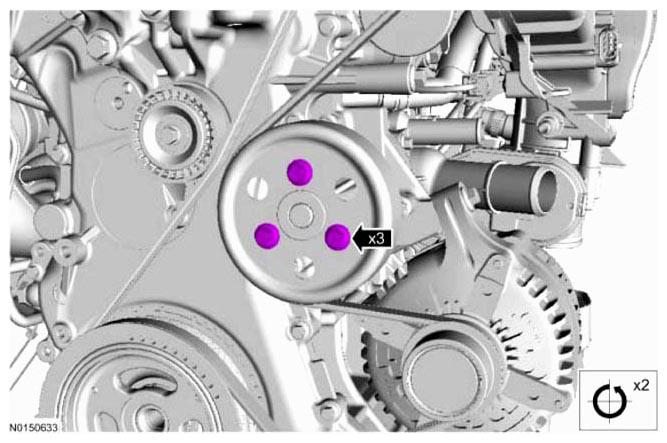

- Loosen 2 turns.

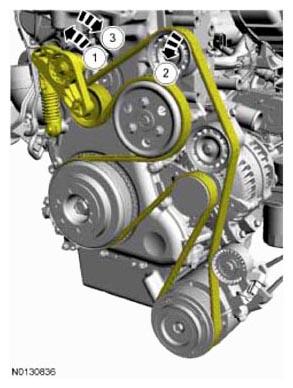

Late build vehicles
All vehicles

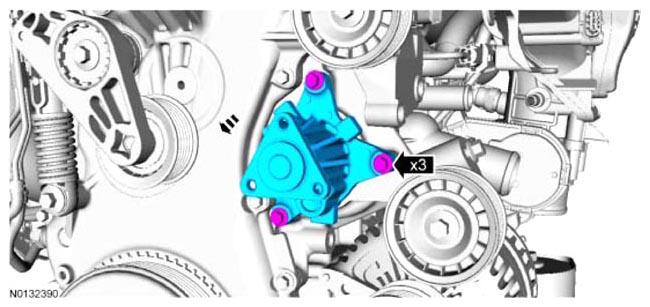

NOTE: Early build vehicle shown in illustration, late build vehicle similar.
NOTE: Protect the accessory drive belt(s) from coolant contamination.
- Discard the O-ring seal.
