Passive Anti-Theft System (PATS) Transceiver: Removal
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the ignition cylinder lock housing. Refer to HANDLES, LOCKS, LATCHES AND ENTRY SYSTEMS - WITHOUT INTELLIGENT ACCESS .

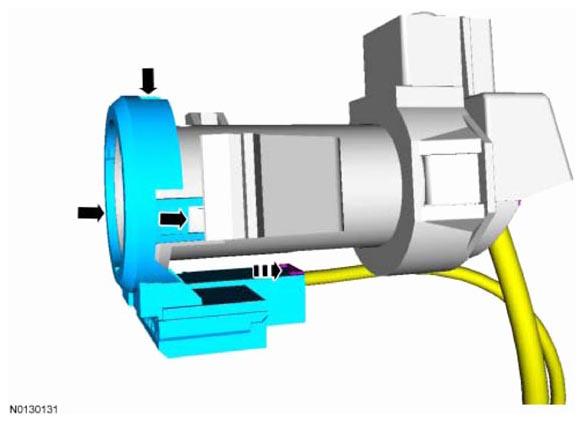

- Release the 3 retainers and remove the PATS transceiver from the ignition lock cylinder housing.
