Wiper Mounting Arm and Pivot Shaft: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cowl panel. REFER to COWL PANEL .

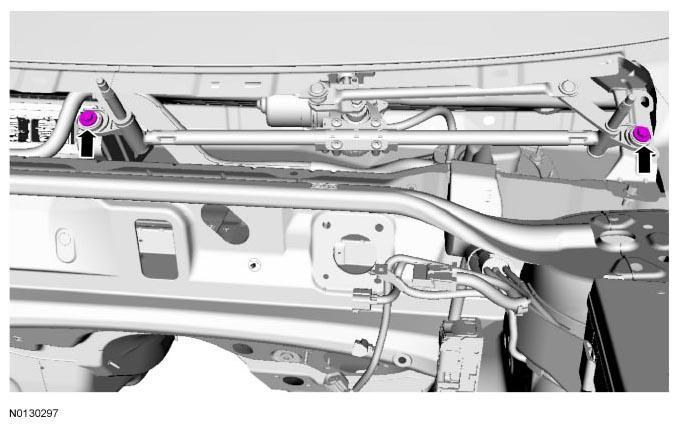

  2. Remove the 2 wiper mounting arm and wiper pivot shaft bolts.
    G07429568

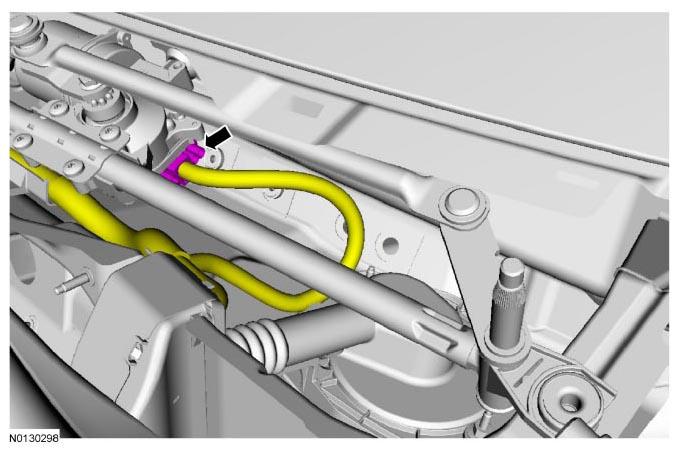

  3. Disconnect the wiper motor electrical connector.
    G07429569
  4. Remove the wiper mounting arm and wiper pivot shaft.
