Washer Pump and Reservoir: Removal
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Carefully read cautionary information on product label. For emergency medical information seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.
NOTE:
To prevent spilling washer fluid, drain the washer reservoir before removal.
- Remove the washer reservoir cap from the washer reservoir.
- Remove the RF fender splash shield. REFER to FENDER SPLASH SHIELD .
-
NOTE: Front bumper cover removed for clarity.

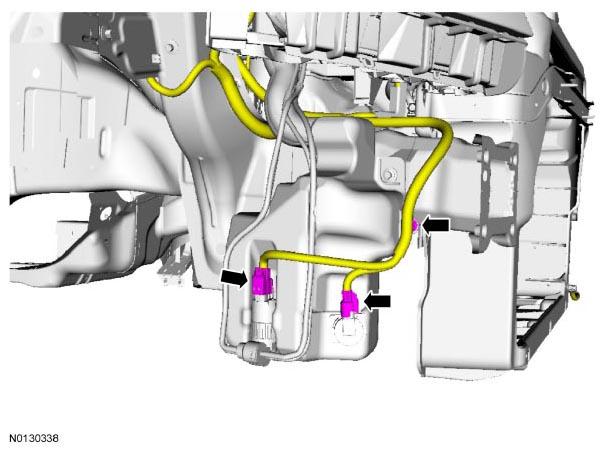

Disconnect the washer pump and washer level sensor electrical connectors and disconnect the wire pin-type retainer from the washer reservoir.
-
NOTE: Front bumper cover removed for clarity.
Disconnect the washer pump hoses.
-
NOTE: Front bumper cover removed for clarity.

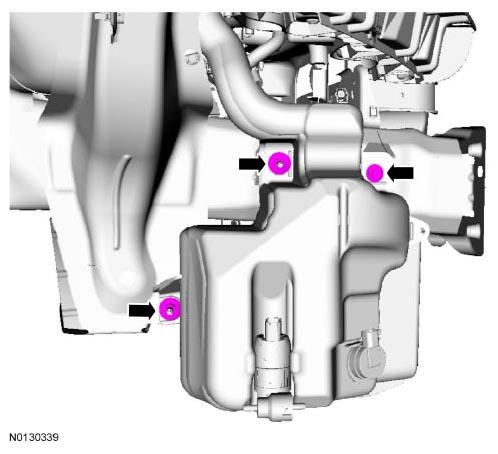

Remove the 2 washer reservoir nuts and the washer reservoir bolt.
-
NOTE: Front bumper cover removed for clarity.

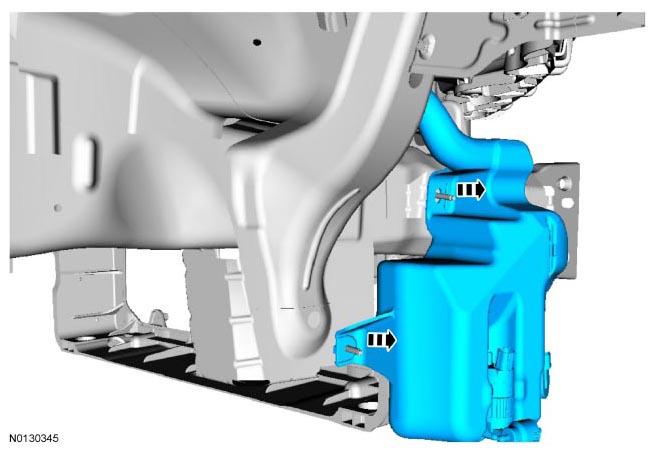

Pull the washer reservoir off of the studs and remove the washer reservoir through the RF wheel well.
