Inertia Fuel Shutoff (IFS) Switch: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

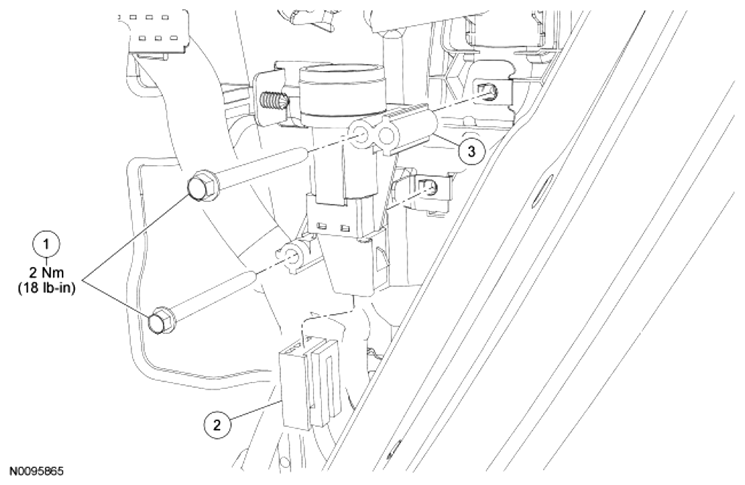

Fig 1: Inertia Fuel Shutoff Switch Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W504149	Inertia Fuel Shutoff (IFS) switch bolts (2 required)
2	14A464	IFS switch electrical connector
3	9341A	IFS switch
