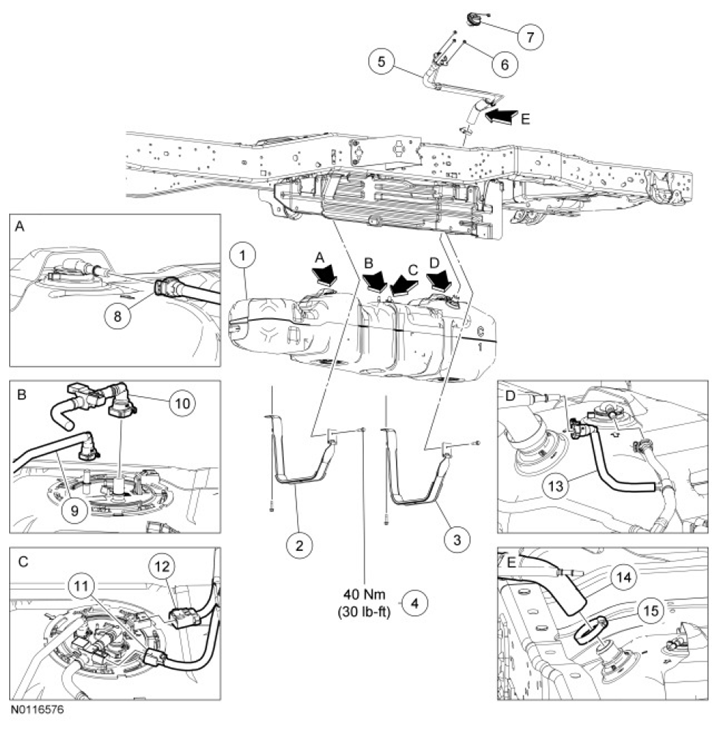

Midship Fuel Tank - 132 L (35 Gal)
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9002 | Midship fuel tank |
| 2 | 9054 | Front fuel tank strap |
| 3 | 9057 | Rear fuel tank strap |
| 4 | W506435 | Fuel tank strap bolt (4 required) |
| 5 | 9034 | Fuel tank filler pipe assembly |
| 6 | W713976 | Fuel tank filler pipe retaining screw (3 required) |
| 7 | 9030 | Fuel tank filler cap |
| 8 | - | Fuel vapor tube-to-fuel tank grade vent valve quick connect coupling (part of 9S278) |
| 9 | - | Fuel supply tube-to-FP module quick connect coupling (part of 9S278) |
| 10 | 9S317 | Fuel vapor tube-to-FP module quick connect coupling |
| 11 | - | Connector fuel vapor tube-to-FP module quick connect coupling |
| 12 | - | FP module electrical connector (part of 9H307) |
| 13 | - | Fuel tank filler pipe vent tube and vapor tube-to-fuel tank grade vent valve (part of 9S278) |
| 14 | - | Fuel tank filler pipe (part of 9034) |
| 15 | W711088 | Fuel tank filler pipe-to-fuel tank hose clamp |
