Aft-of-Axle Fuel Tank - 151 L (40 Gal)
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

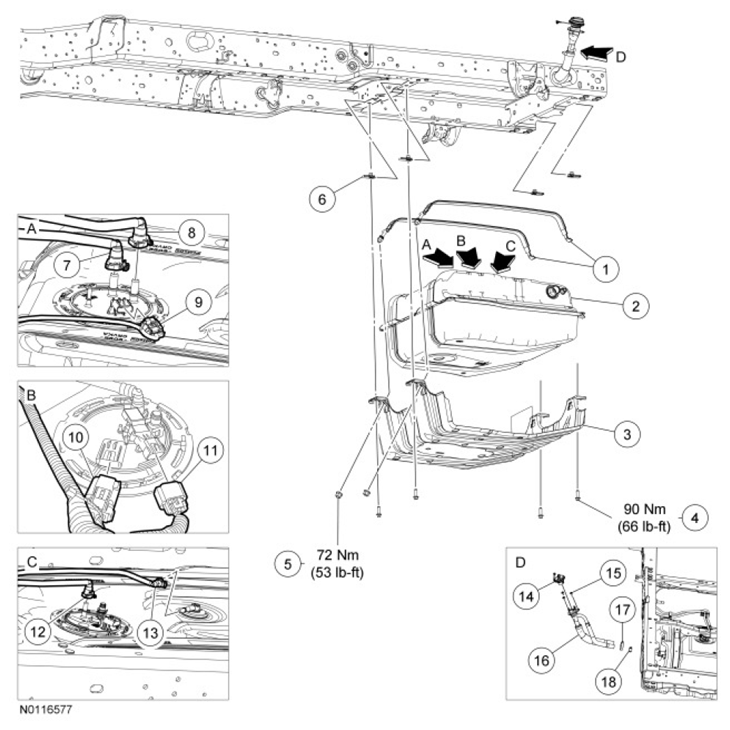

| Item | Part Number | Description |
|---|---|---|
| 1 | 9092 | Fuel tank straps |
| 2 | 9002 | Aft-of-axle fuel tank |
| 3 | 9A147 | Fuel tank shield |
| 4 | W711170 | Fuel tank shield bolt (4 required) |
| 5 | 379696 | Fuel tank strap nuts (2 required) |
| 6 | N803334 | Fuel tank shield J-clip (4 required) |
| 7 | - | Fuel supply tube-to-fuel level sensor quick connect coupling (diesel engine) (part of 9S278) |
| 8 | - | Fuel return tube-to-fuel level sensor quick connect coupling (diesel engine) (part of 9S278) |
| 9 | - | Fuel level sensor electrical connector |
| 10 | - | FP module electrical connector (part of 9H307) |
| 11 | - | FP module electrical connector (part of 9H307) |
| 12 | - | Fuel supply tube-to-FP module quick connect coupling (part of 9S278) |
| 13 | - | Fuel vapor tube-to-fuel tank grade vent valve quick connect coupling (part of 9S278) |
| 14 | 9030 | Fuel tank filler cap |
| 15 | W713976 | Fuel tank filler pipe retaining screw (3 required) |
| 16 | 9034 | Fuel tank filler pipe assembly |
| 17 | W711088 | Fuel tank filler pipe-to-fuel tank hose clamp |
| 18 | W711089 | Fuel tank filler pipe vent hose-to-fuel tank hose clamp |
- For additional information, refer to the procedures in this article.
