Fuel Pump (FP) Module Mounted Sender - Gasoline Vehicles

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

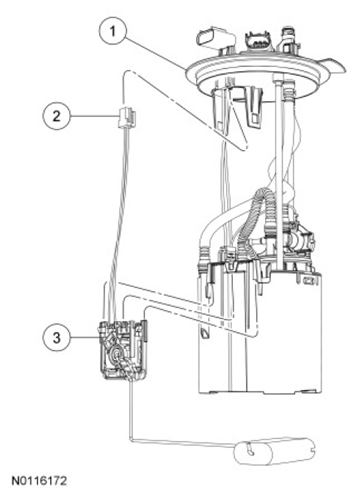

Fig 1: Identifying Fuel Pump Module And Fuel Level Sender (Gasoline Vehicles)
G07484379Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9H307 Fuel Pump (FP) module
2 - Fuel level sender electrical connector (part of 9A299)
3 9A299 Fuel level sender
