Fuel Conditioning Module - 6.7L Diesel: Material
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Specification |
|---|---|
| Motorcraft® SAE 15W-40 Super Duty Diesel Motor Oil XO-15W40-QSD (US); CXO-15W40-LSD12 (Canada) |
WSS-M2C171-E |

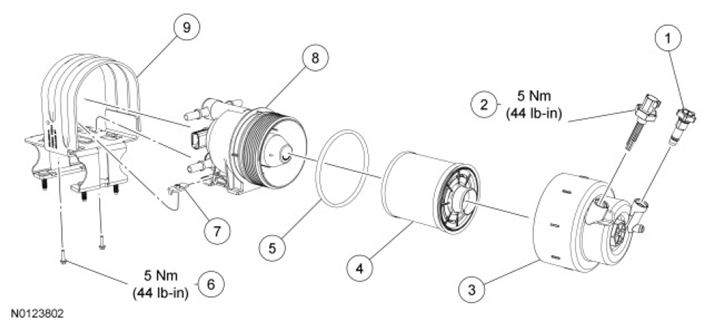

| Item | Part Number | Description |
|---|---|---|
| 1 | 9N188 | Drain plug |
| 2 | 9T321 | Water-in-fuel sensor |
| 3 | - | Fuel filter cover (part of 9G282) |
| 4 | 9N184 | Fuel filter |
| 5 | - | Fuel filter cover O-ring seal |
| 6 | W500005 | Fuel conditioning module housing bolt (2 required) |
| 7 | 9B258 | Fuel conditioning module spacer (2 required) |
| 8 | - | Fuel conditioning module housing (part of 9G282) |
| 9 | 9A335 | Fuel conditioning module mounting bracket |
