Removal And Installation: Fender: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly. REFER to HEADLAMP ASSEMBLY .
  2. Remove the cowl panel grille. Refer to COWL PANEL GRILLE .

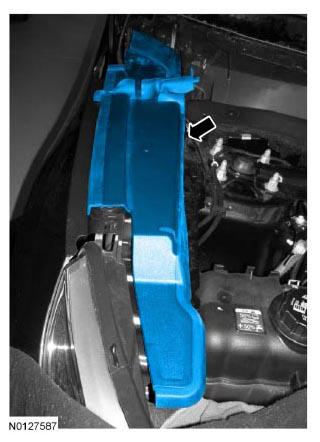

  3. NOTE: RH shown in illustration, LH similar.

    Using a plastic trim removal tool, carefully remove the cowl panel grille filler panel beginning at the rear and working forward.

    G07431645
  4. Remove the fender splash shield. Refer to FENDER SPLASH SHIELD .

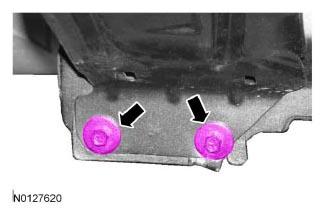

  5. NOTE: LH shown in illustration, RH similar.

    Remove the 2 fender-to-rocker panel bolts.

    G07431646

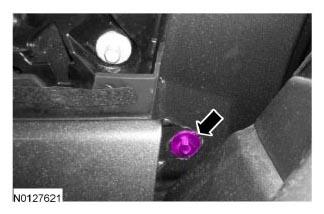

  6. NOTE: LH shown in illustration, RH similar.

    Remove the fender-to-A-pillar bolt.

    G07431647
  7. Remove the windshield applique. REFER to APPLIQUE - WINDSHIELD .

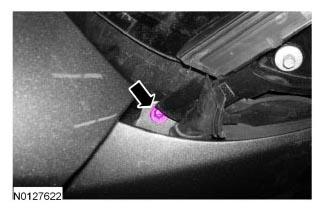

  8. NOTE: LH shown in illustration, RH similar.

    Remove the fender-to-cowl panel bolt.

    G07431648

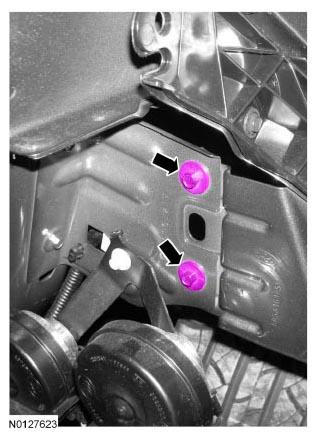

  9. NOTE: LH shown in illustration, RH similar.

    Remove the 2 front fender-to-apron bolts.

    G07431649

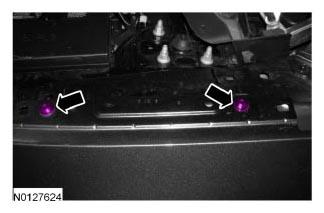

  10. NOTE: LH shown in illustration, RH similar.

    Remove the 2 top fender-to-apron bolts.

    G07431650

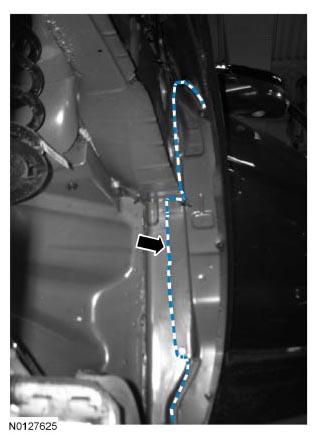

  11. NOTE: LH shown in illustration, RH similar.

    Carefully cut the foam sealer between the fender, fender baffle and the A-pillar.

    G07431651
  12. Remove the fender.
