Fender Splash Shield: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown in illustration, RH side similar.
  1. Remove the tire and wheel. REFER to WHEEL AND TIRE .
  2. Remove the 3 pin-type retainers at the rear of the fender moulding.
    G07431632
  3. Remove the 3 rear fender splash shield pin-type retainers.
    G07431633
  4. Remove the 4 middle fender splash shield pin-type retainers.
    G07431634

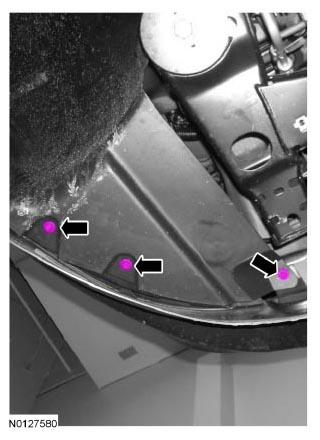

  5. Remove the 3 lower fender splash shield bolts.
    G07431635
  6. Remove the 4 front fender splash shield screws.
    G07431636
  7. Position aside the fender moulding and remove the fender splash shield screw.
    G07431637
  8. Remove the 3 upper fender splash shield pin-type retainers.
    G07431638
  9. Remove the fender splash shield.
