Fender Splash Shield: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown in illustration, RH side similar.
  1. Position the fender splash shield to the vehicle.

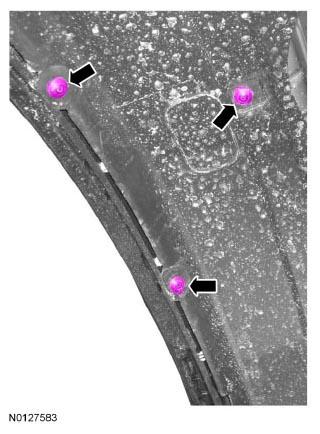

  2. Install the 3 upper fender splash shield pin-type retainers.
    G07431638

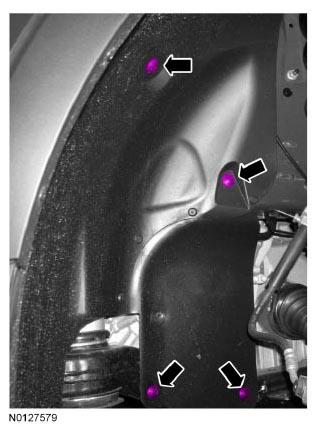

  3. Install the 4 middle fender splash shield pin-type retainers.
    G07431634

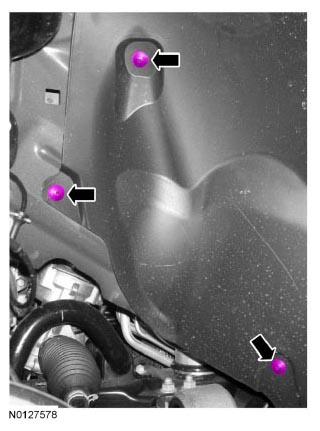

  4. Install the 3 rear fender splash shield pin-type retainers.
    G07431633

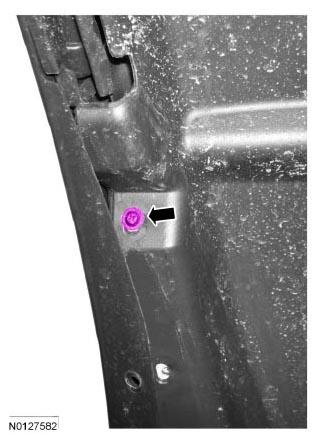

  5. Position aside the fender moulding and install the fender splash shield screw.
    • Tighten to 3 Nm (27 lb-in).
      G07431637

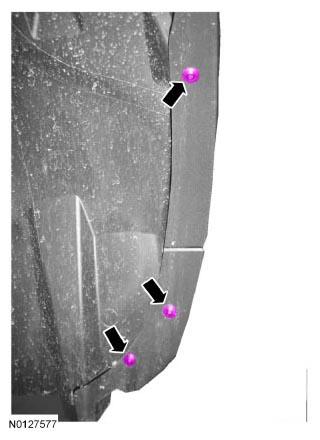

  6. Install the 3 fender moulding pin-type retainers at the rear of the moulding.
    G07431632

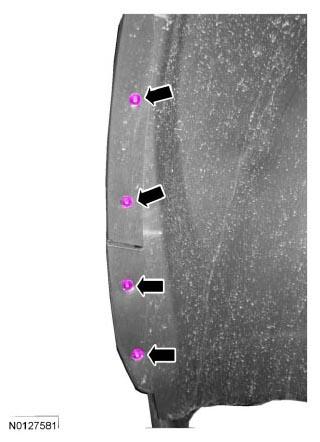

  7. Install the 4 front fender splash shield screws.
    • Tighten to 3 Nm (27 lb-in).
      G07431636
  8. Install the 3 lower front fender splash shield bolts.
    • Tighten to 3 Nm (27 lb-in).
  9. Install the tire and wheel. REFER to WHEEL AND TIRE .
