Cowl Panel: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the cowl panel to the vehicle.

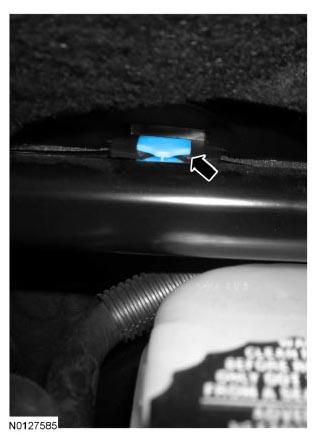

  2. NOTE: LH side shown in illustration, RH side similar.

    Install the cowl panel in the RH and LH retaining clips.

    G07431662

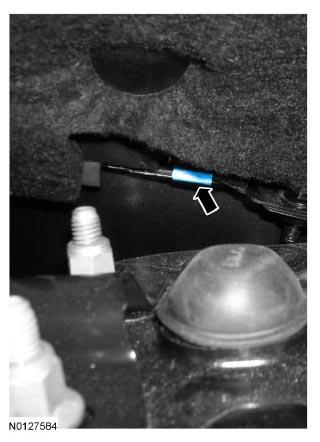

  3. NOTE: LH side shown in illustration, RH side similar.

    Install the LH and RH retainer clips.

    G07431661

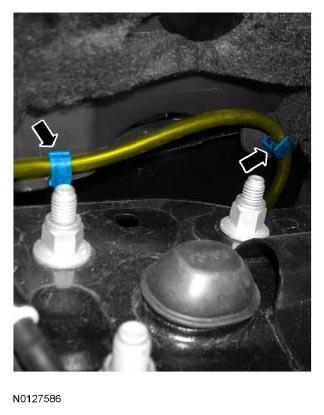

  4. Install the washer hose in the retainer clips on the RH side of the vehicle.
    G07431663
  5. Install the cowl grille panel. Refer to COWL PANEL GRILLE .
