Cowl Panel Grille: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. REFER to WIPER PIVOT ARM - FRONT
  2. Remove the 6 pin-type retainers.
    G09090683

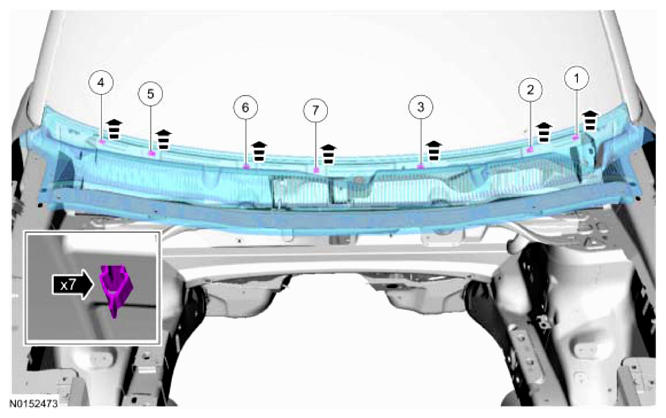

  3. NOTE: Releasing of the clips must be done in the specific order as indicated, otherwise damage to the cowl panel grille may result.

    With your fingers between the windshield and cowl panel grille, near each clip, pull up to release the 7 upper locking clips and remove the cowl panel grille.

    G09090684
