Automatic Torque Coupling (ATC) Configuration

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the scan tool, under the toolbox icon select Powertrain then select ATC  Barcode Entry. Follow the instructions displayed on the scan tool.
    NOTE: If the ATC  bar code information is not correct, RDU  damage or driveability concerns can occur.

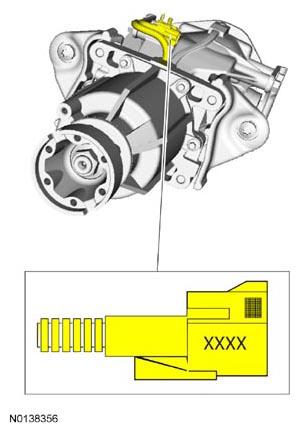

  2. Enter the 4-digit code found on the ATC  solenoid wire harness connector. The scan tool verifies the digits entered are valid and displays a message if the information is not valid.
    G08616302

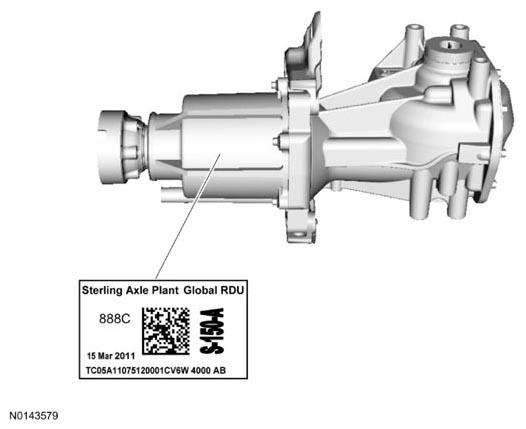

  3. Enter the 4-digit alpha numeric bar code found on the label. The scan tool verifies the digits entered are valid and displays a message if the information is not valid.
    G08617273
  4. Follow the instructions displayed on the scan tool.
  5. Road test the vehicle. Carry out the AWD  drive cycle after downloading the ATC  solenoid bar code information to the PCM. REFER to FOUR WHEEL DRIVE (4WD) SYSTEMS .
