Seat - Police Package: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Before beginning any service procedure, refer to SAFETY WARNINGS . Failure to follow this instruction may result in serious personal injury.

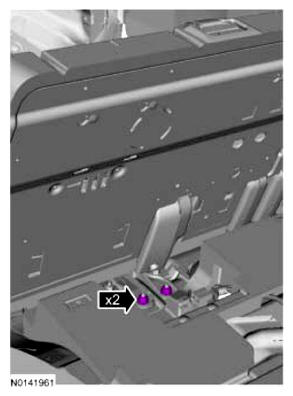

1. 22 Nm (16 lb-ft)
NOTE: Cencom gold shown in illustration, Cencom diamond similar.

For 60 percent seat.
For 60 percent seat.

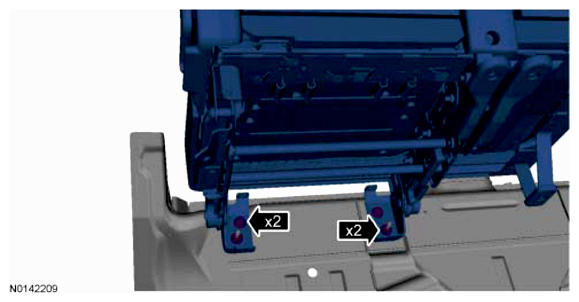

NOTE: 60 percent shown in illustration, 40 percent similar.
1. 80 Nm (59 lb-ft)
NOTE: 60 percent shown in illustration, 40 percent similar.
1. 48 Nm (35 lb-ft)

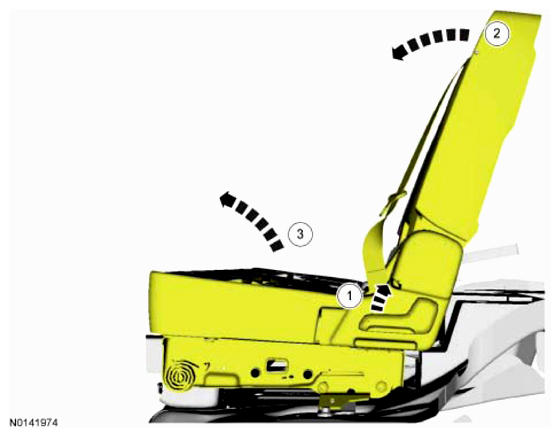

NOTE: 60 percent shown in illustration, 40 percent similar.
NOTE: 60 percent shown in illustration, 40 percent similar.
