Seat - Police Package: Installation

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

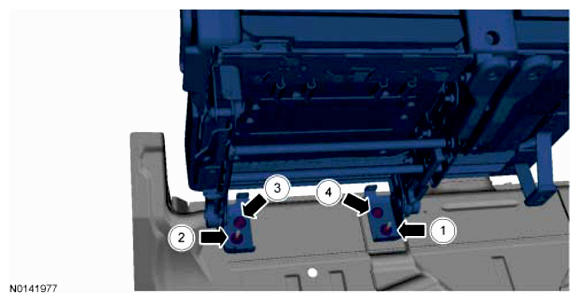

  2. For 60 percent seat.
    1. 48 Nm (35 lb-ft)
      G09091130

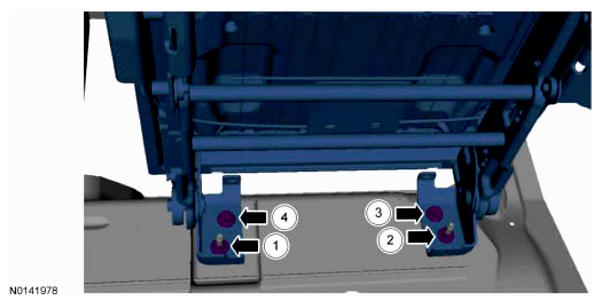

  3. For 40 percent seat.
    1. 48 Nm (35 lb-ft)
      G09091131
