Seat Backrest - Trim Parts
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

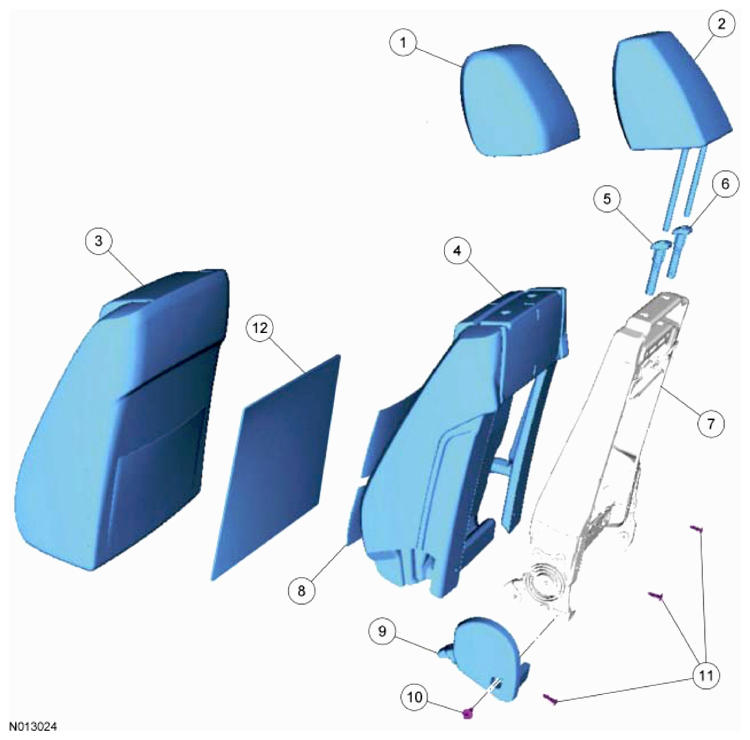

| Item | Part Number | Description |
|---|---|---|
| 1 | 610A62 | Head restraint cover |
| 2 | 611A08 | Head restraint |
| 3 | 64416 | Backrest trim cover |
| 4 | 64810 | Backrest foam pad |
| 5 | 60A16 | Head restraint guide sleeve, master |
| 6 | 610A18 | Head restraint guide sleeve, slave |
| 7 | 61018 | Backrest frame |
| 8 | - | Backrest heater mat (If equipped, part of 61018) |
| 9 | 62186 | Cushion side shield |
| 10 | W710250 | Scrivet |
| 11 | W706676 | Pin type retainer |
| 12 | - | Stab shield (police package) |
