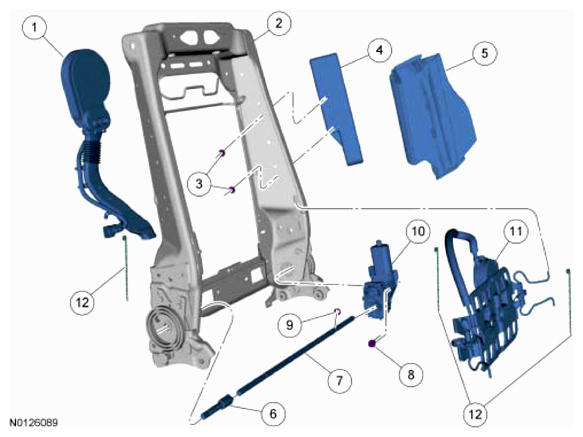

Seat Backrest - Frame Parts With Power Lumbar, Power Recline and Climate Controlled Seat System
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 19N550 | Backrest TED (if equipped) |
| 2 | 61018 | Backrest frame |
| 3 | W520111 | Side air bag module-to-backrest frame nuts |
| 4 | 611D10 | Side air bag module |
| 5 | 610E38 | Deployment chute |
| 6 | 613A68 | Short recliner shaft (if equipped) |
| 7 | 613A68 | Long recliner shaft (if equipped) |
| 8 | W701242 | Power recline motor bolt (if equipped) |
| 9 | 61479 | Recliner shaft E-clip (if equipped) |
| 10 | 14547 | Power recline motor (if equipped) |
| 11 | 65500 | Power lumbar adjust assembly (if equipped) |
| 12 | - | Zip tie (if equipped) |
