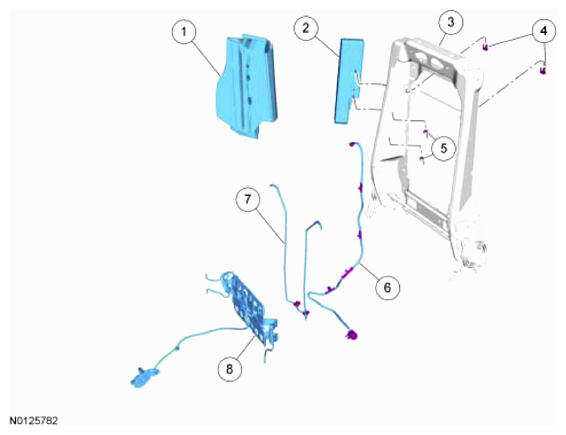

Seat Backrest - Frame Parts With Manual Lumbar and Static Lumbar
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 610E38 | Deployment chute |
| 2 | 611D10 | Side air bag module |
| 3 | 61018 | Backrest frame |
| 4 | W790133 | Static lumbar-to-backrest frame clip |
| 5 | W520111 | Side air bag module-to-backrest frame nuts |
| 6 | 14C687 | Side air bag module jumper wire harness |
| 7 | 64842 | Static lumbar (if equipped) |
| 8 | 65500 | Manual lumbar adjust assembly (if equipped) |
