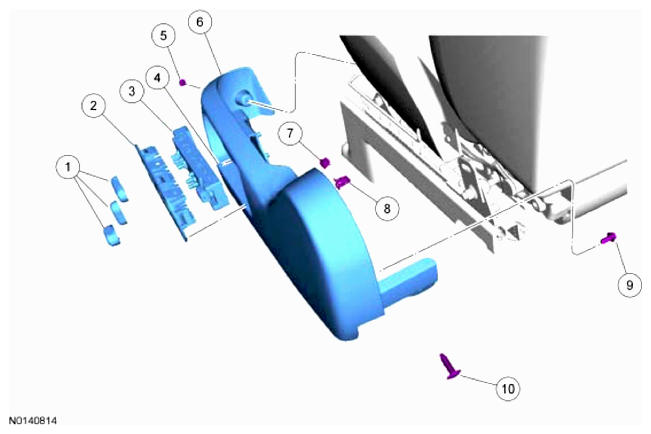

Cushion Side Shield - Power Seat Track With Power Recline and Power Lumbar (10-Way Power)
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14711 | Seat track control knob |
| 2 | 63258 | Cushion side shield bezel |
| 3 | 14A701 | Seat control switch |
| 4 | W713899 | Screw |
| 5 | W505153 | Screw |
| 6 | 62186 | Cushion side shield |
| 7 | W713010 | Cushion side shield retainer |
| 8 | W711045 | Cushion side shield retainer |
| 9 | W506841 | Screw |
| 10 | W706676 | Pin type retainer |
